Professional Square Hole Pneumatic Laser Chuck High Precision 4 Jaw
Rotary Chuck
1. Description

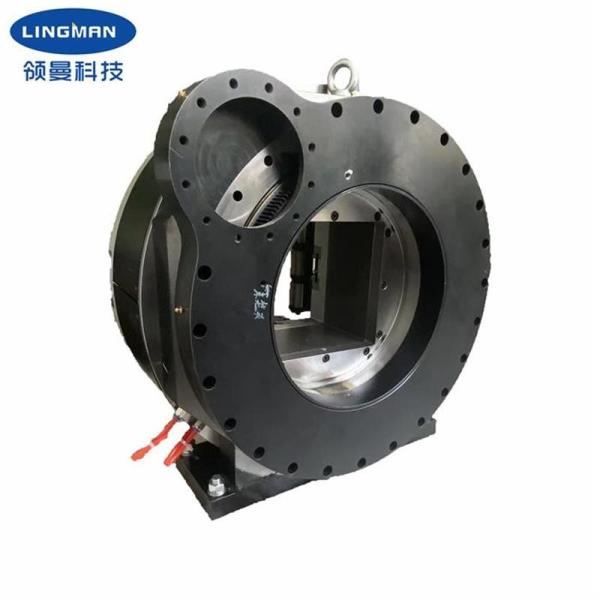

Our laser chuck is mainly designed for laser tube cutting machine.
Laser chuck is used for clamping and feeding tubes when cutting
tube. It can clamp not only round tubes, but also rectangular tube,
L-shap tube, H-shape tube and so on.
It is used base point positioning and it is convenient for the
adjustment of the main quipment and greatly shortens the debugging
time of the main equipment. And our design is full stroke design.
There's no need to adjust the jaw, it is easy to clamp and
centering, to achieve switching different pipe diameters, which
greatly saving clamping time.
It can realize quick clamping and loosening by rotating air intake
from the side, disconnet the air source before working. It is
controlled by switching single and double cylinders, which produces
differentc clamping forces, which has more advantages of clamping
thin-walled tubes and heavy-duty pipes. Becaus of the long length
of the parts processed by the cutter, the main chuck used as the
head position of laser cutting and feed chuck matched with it are
usually installed in pairs on the machine.This penumatic chuck is
widely used in special laser pipe cutters and other pipe processing
machine system.
2. Performance Parameters
Product name | Pneumatic rotary chuck |
Model number | G620DF-245 |
Claw stroke | 236mm |
Maximum clamping force | 2.1KN |
Alloable pressure | 0.2-0.9MPa |
Limit speed | 150r/min |
Clamping range | 6-242mm |
Central height | 315mm |
Rotational inertia | 5.2kg.㎡ |
Rotating part weight | 120kg |
Whole unit weight | 250kg |
Note: Above numbers are standard parameters. We can also design
products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G620DF-245 | 420 | 315 | 624 | 662 | 220 | 60 | 380 | 403.5 | 245×245 | / | 444.5 | / | / | / | 18X22 |
4. Advantages
| a. Full stroke designed pneumatic rotary chuck |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
