    High Stiffness HAK31063 Factory Direct Supply 6/8 Position NC Turret HAK31 Series

    Ask Lasest Price
    Brand Name : LINGMAN
    Model Number : HAK31080
    Price : 1550~1700USD
    Payment Terms : TT, L/C, Western Union
    Supply Ability : 500SETS/Month
    Delivery Time : 7 days
    • Product Details
    • Company Profile

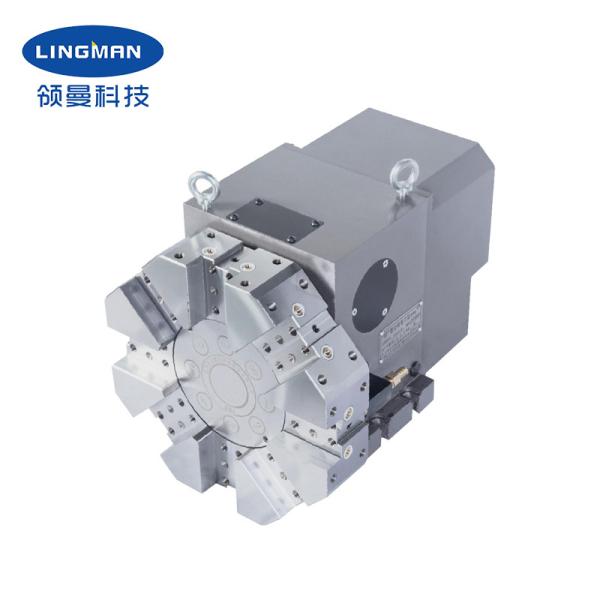

    High Stiffness HAK31063 Factory Direct Supply 6/8 Position NC Turret HAK31 Series


    1. Descripition


    Model HAK31 series horizontal NC turret adopts the working principle of worm for driving, 3 face gear coupling as fine indexing mechanism, big screw for clamping, sending signal with Hall unit. It features indexing without too-holder disk lifting, steady rotating, low noise, high stiffness, multi stations, build-in cooling. lt is the ideal choice for processing complex parts.


    2. Performance Parameters


    technical
    turret modelHAK31063HAK31080HAK31100HAK31125HAK31160
    ltemunitNumerical value
    Center Heightmm6380100125160
    Station NumberN6/86/86/86/86/8
    Load-bearing(including disc)Kg274080120200
    Max.tangential torqueN.m6001000150025004000
    Maximum off load momentN.m7154060120
    Time of changing adjoin toolS2.6/2.82.8/3.03.6/3.84.0/4.24.3/4.5
    Repeatbility accuracy±2±2±2±2±2
    Motor powerW1201204N.m4N.m6N.m
    Motor rated voltageV380380380380380
    N.W.(without tool disc)Kg456075130300
    Turret specifications and accessories
    6T Disc sizemm230260300340460
    8T Disc sizemm230260300340460
    O.D.toolmm20252525/3232/40
    Facing toolmm20252525/3232/40
    Boring toolmm2532404050
    Note: Non-standard cutter head such as VDI and BMT can be customized, and the cooling mouth of the front tool holder is opposite to the position shown

    3. Dimensions

    5. Production Line
