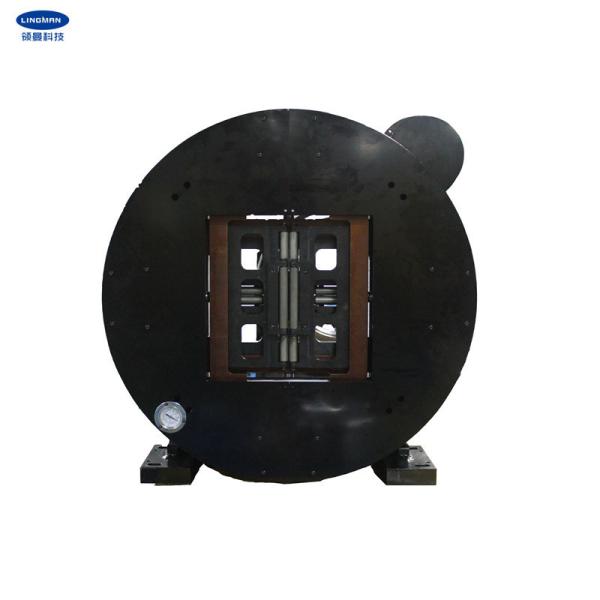

    Hollow Vertical Pneumatic Chuck 3 Jaw Automatic Lathe Chuck

    Ask Lasest Price
    Brand Name : Lingman
    Model Number : Laser chuck G680JF-245
    Price : USD 3800-6500 set
    Payment Terms : T/T, L/C
    Supply Ability : 500 sets per month
    Delivery Time : 15-20 work days
    • Product Details
    • Company Profile

    Hollow Vertical Pneumatic Chuck 3 Jaw Automatic Lathe Chuck

    Hollow Vertical Pneumatic Chuck 3 Jaw Automatic Lathe Chuck

    1. Description


    1. Patent product, vertical type with baseboard.
    2. Super thin body, easy retrofit.
    3. Built -in cylinder structure, convenient for installation.
    4. Accuracy, within 0.03mm.
    5. Pneumatic operation Standard.
    6. This chuck is applicable for machining center, driller and miller.
    7. 2 jaw and 4 jaware available.

    8. Rigid and short construction makes the stationary 3 jaw chucks ideal for operating in machining centers


    2. Performance Parameters


    • Product name
    Laser chuck
    • Model number
    G680JF-245
    • Claw stroke
    230mm
    • Maximunm clamping force
    2KN
    • Allowable pressure
    0.1-1.0MPa
    • Limit speed
    200r/min
    • Clamping range
    10-245mm
    • Central height
    350mm
    • Rotational inertia
    5.48g.m2
    • Rotating part weight
    173kg
    • Whole unit weight
    257kg

    ​ 3. Dimensions


    Hollow Vertical Pneumatic Chuck 3 Jaw Automatic Lathe Chuck

    SpecificationsABB1CDEFGHIJKLORS
    G680JF-245520350680690190120460205///29.5245912-M818

    Hollow Vertical Pneumatic Chuck 3 Jaw Automatic Lathe Chuck


    4. Advantages

    a. Full stroke design
    b. Wide range of applications, diversification of processing profiles
    c. High repetitive positioning accuracy
    d. Low maintenance cost, long service life

    e. Multiple configurations are available
    e.1 Solid or hollow

    e.2 Comb-type or mortise-groove type claws


    5. Our Service

    1. We are the direct factory with good price and fast lead time.
    2. Professional design team work with you.

    3. Professional QC team to guarantee the high quality.

    4. Providing OEM & ODM service.


    6. Production Line

    Hollow Vertical Pneumatic Chuck 3 Jaw Automatic Lathe ChuckHollow Vertical Pneumatic Chuck 3 Jaw Automatic Lathe ChuckHollow Vertical Pneumatic Chuck 3 Jaw Automatic Lathe Chuck
