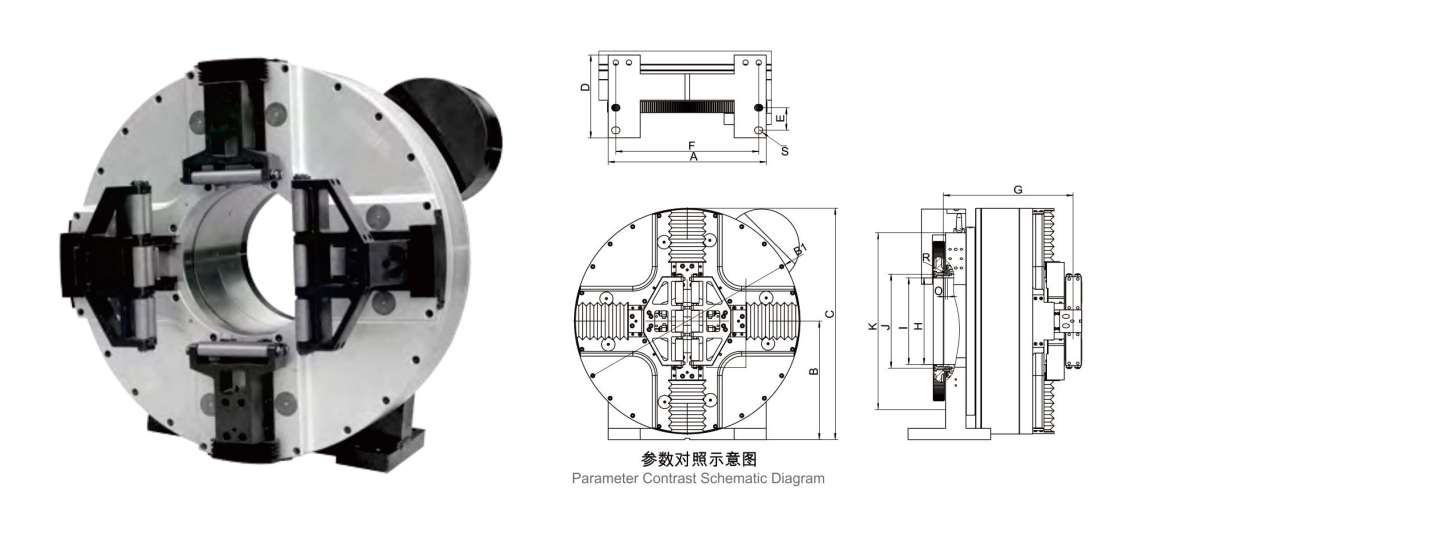

Single bearing full stroke main laser chuck for laser tube cutting machine-- partner of Hans Laser/HSG/LONGXIN/JT laser

A. Specially design for laser tube cutting machine;

B. Can be used as an independent rotating spindle,chuck in it can firmly clamp workpiece and rotate simutaneously;

C. Quick clamping and loosening can be realized by side rotation and air intake;

D. Motor+gear+laser chuck+compressed air source(0.2-0.9Mpa)=Work!

Advantage:

1. Base point positioning-convenient for adjustment of main equipment and greatly shortens the debugging time of the main equipment;

2. Claw release test-greatly improves the reliability of chuck safe operation;

3. Full stroke design-No need to adjust the claw,easy clamping and centering,to achieve switching among different pipe diameter,which greatly saving clamping time.large clamping force ,wide calmping range,long holding time(more than 8 hours),stable performance;

4. Wide range of application---different material,different diameters,such as:round tube,square tube,rectangular pipe,O-pipe,triangular pipe,H-beam and channel steel etc.

5. High repetitive positioning accuracy--high accuracy;

6. Low maintenance cost,long service life--All sliding parts are hardened and have good wear resistance;good sealing design for guide goove of the sliding part claw which improve the dust-proof performance; adequate lubrication design sliding parts;dynamic balance detection;

7. Multiple configurations available--solid or hollow/Comb-type/mortise-goove type claws/keyway extension claw or roller claw/2-claw/3-claw/4-claw/6-claw or abnormal claw;

8. 3D design for accurate,fast and effecient design;

9. Structual finite element analysis for strength check,deformation,strain,stiffness caculation of parts at different direction--to assure parts fully meet the design request under different loading and restraint conditions

Lingman Machinery Technology (Changzhou) Co., Ltd. was established on June 8, 2020 and has passed ISO9001:2015 quality management system certification. It is an enterprise that focuses on R&D, production and sales of various power clamps and chucks for laser pipe cutting machines, pneumatic chucks, electric chucks, hydraulic chucks, digital chucks and other power chucks. The company will create a 4,000-square-meter production base. It is estimated that 20 million yuan will be invested in production and processing equipment, plant construction and raw material costs within 2 to 3 years. The company has a professional technical R&D team and innovative R&D and design capabilities.

Our company was founded in less than a year, and now has a number of patents (including invention patents and utility model patents). The professional technology research and development team has been preparing to become a Jiangsu high-tech enterprise from the early stage of business operation. At the same time that the products are sold domestically, the company's foreign trade team has opened up our products from Linkman Technology to the basically blank laser pipe cutting market abroad, making a contribution to China's intelligence.

Our factory focuses on formulating most kinds of chucks in China, which includes self-centering chucks, power chucks, laser cutting chucks, hydraulic cylinder and so on. We are very professional and have full experience in various kinds of chucks' production, some of our chucks are leading in the market in some countries. We are capable of supplying our products in different sizes according to customers' specific requirements.

We are always trying our best to offer the best services and the most competitive prices with high quality goods for our customers, it's the way we win our customers and market. We are determined to become a high-quality supplier of fixtures and auxiliary equipment used in lathes, machining centers, drilling and milling machines, welding and cutting equipment, laser equipment and other industries at domestic and abroad.
