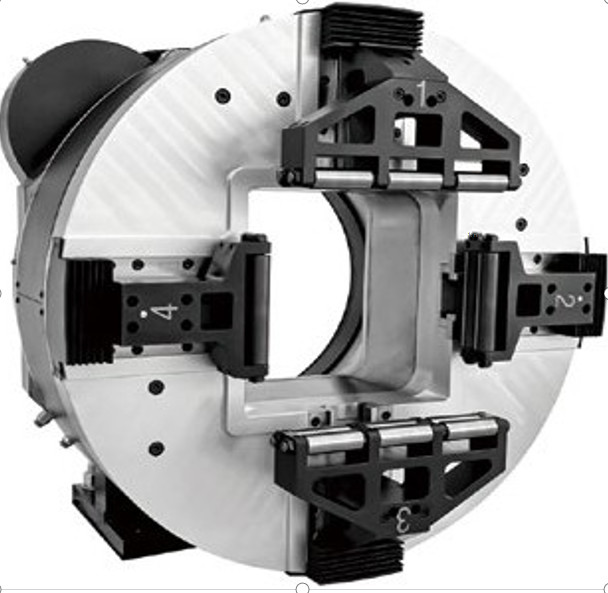

Simple Pneumatic Double-Acting Chuck For Tube-Sheet Intergrated
Machines(Square Opening)
Product description
The product is specially designed for laser tube cutting equipment.

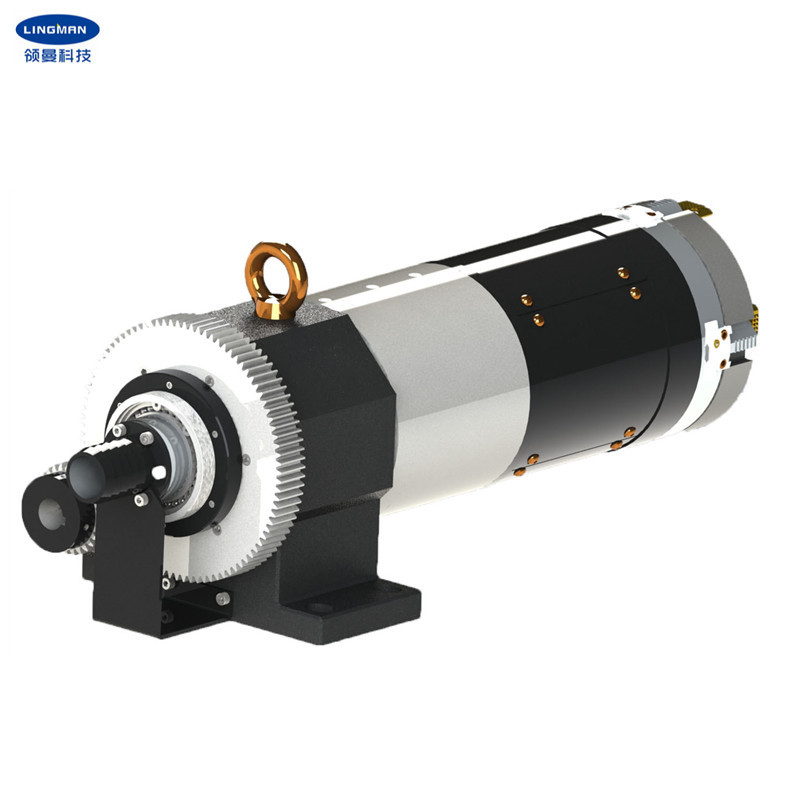

The product itself can be used as an independent rotating spindle,
with a chuck that can firmly clamp the workpiece while rotating.
Fast clamping and loosening actions can be achieved through the
side rotating air intake, and the air source has to be disconnected
to work.
The product outputs by using a cylinder directly, the mechanical
efficiency is high, the energy loss is small, the output clamping
force is large, and the clamping force is stable. Because the
cylinder is used to clamp the workpiece directly, the working
stroke of the cylinder is the working stroke of the chuck, and the
clamping range is wide. The cylinder is used for outputting
directly, the output force and the air pressure are in linear
proportion, which makes it easy to achieve software control. The
chuck has a simple structure, few elements and components, light
weight, low failure rate, stable performance, small moment of
inertia and low energy consumption. The axial dimension of the
chuck is small, and the cost for achieving zero tailings is lower.
The product is designed as a square middle hole. Compared with a
round hole chuck, the size of square tube is increased and the
scope of use is expanded.
Performance Parameter
| Model | Claw stroke/diameter(mm) | Maximum clamping force(kn) | Allowable pressure (MPa) | Clamping range(mm) | Central height(mm) | Rotational inertia (kg.m2) | Rotating part weight(kg) | Whole unit weight(kg) |
| G700D-270 | 154 | 1.2 | 0.25-0.9 | 16-170 | 260 | 1.72 | 89 | 144 |
Company Profile
Lingman Machinery Technology (Changzhou) Co., Ltd. is an enterprise
focusing on R&D, production and sales of various pneumatic
chucks, electric chucks, hydraulic chucks and other power chucks.
It is located in Hengshanqiao Intelligent Equipment Industrial
Park, Tianning District, Changzhou City, Jiangsu Province. We are
near Shanghai and has extremely convenient transportation
conditions. 2 hours to reach the Shanghai port. With production
equipment and innovative design capabilities, it can provide users
with Satisfactory service. We can also design and produce all kinds
of machine tools, non-standard equipment, special power fixtures
and chucks for laser pipe cutting machines according to different
user needs. The company is based on technological innovation,
service quality first business philosophy, to provide each customer
with suitable products, caring services, continuous technical
research and development, full implementation of quality
management, continuous improvement of the service system, and look
forward to winning new and old customers favor.
