Full Stroke Square Hole Latest Designed Rotary Main Chuck of Laser
Dedicated Pipe Cutter
1. Description
Our company has 15 years of professional production of CNC lathes
and laser cutting machine pneumatic rotary chuck experience of
professional manufacturers. The chuck is the latest laser chuck
designed for 2022.
The chuck itself can be operated as an independent rotating
spindle. The new chuck has the following advantages: 1, reducer
installation position can be adjusted arbitrarily; 2. The same
collet size is suitable for processing coffins with a larger size
range, which can be effectively used to clamp thin or fragile tubes
to prevent flattening. Through the round hole limit, the clamping
range is wider.
This latest pneumatic rotary chuck has the characteristics of
simple structure, convenient installation, strong applicability,
durable cleaning, reliable clamping, durable precision and so on.
It can improve operation efficiency, reduce manufacturing cost and
reduce labor intensity of employees. This pneumatic rotary chuck is
suitable for professional pipe cutting machine, pipe plate machine
and other clamping pipe fitting, suitable for all kinds of round
pipe, square pipe, rectangular pipe, elliptical pipe cutting
processing, slightly modify the claw can cut all kinds of pipe
fitting pipe shape.
2. Performance Parameters
| Product name | Pneumatic rotary chuck |
Model number | G360CF-130 |
| Claw stroke | 124mm |
| Maximum clamping force | 0.6KN |
| Alloable pressure | 0.2-0.9MPa |
| Limit speed | 200/min |
| Clamping range | 4-128mm |
| Central height | 235mm |
| Rotational inertia | 1.42kg.㎡ |
| Rotating part weight | 71kg |
| Whole unit weight | 134kg |
Note: above numbers are standard parameters. We can also design
products according to clients' special requirements.

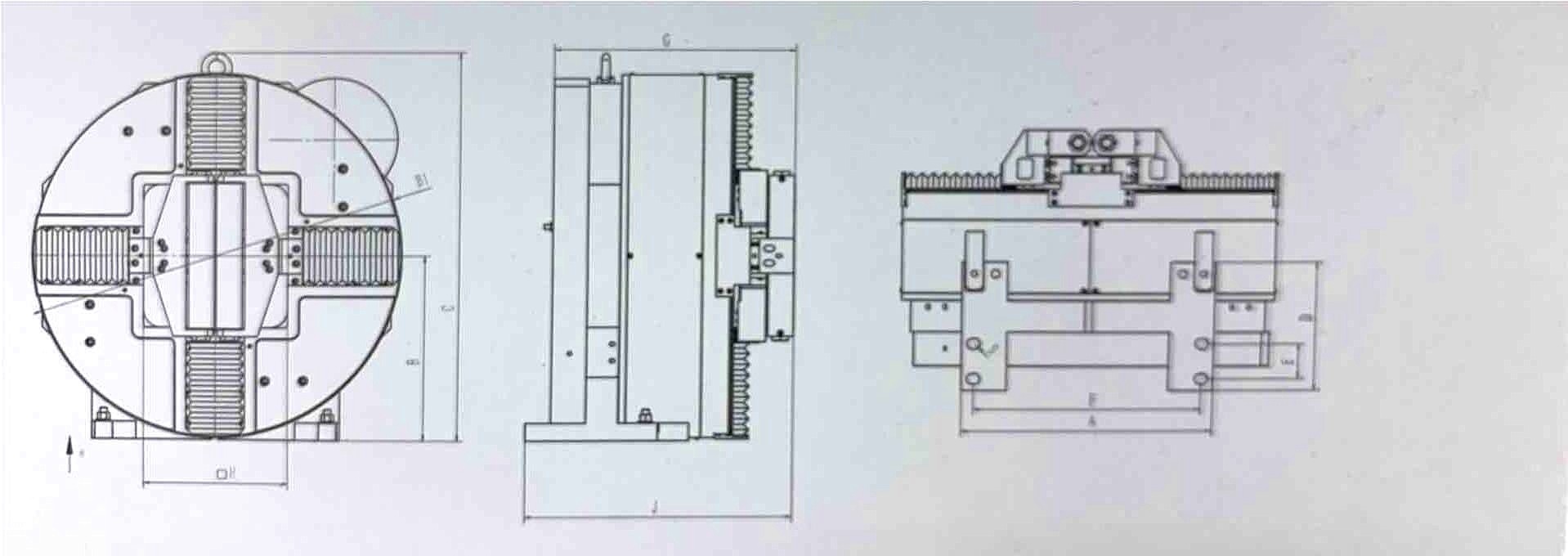

3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G360CF-130 | 430 | 235 | 440 | 620 | 120 | 80 | 368 | 272 | 130 | 200 | 324 | / | / | 12-M6 | 18X33 |
4. Advantages
| a. Full stroke designed pneumatic rotary chuck |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
