PRODOCUT OVERWIEW:

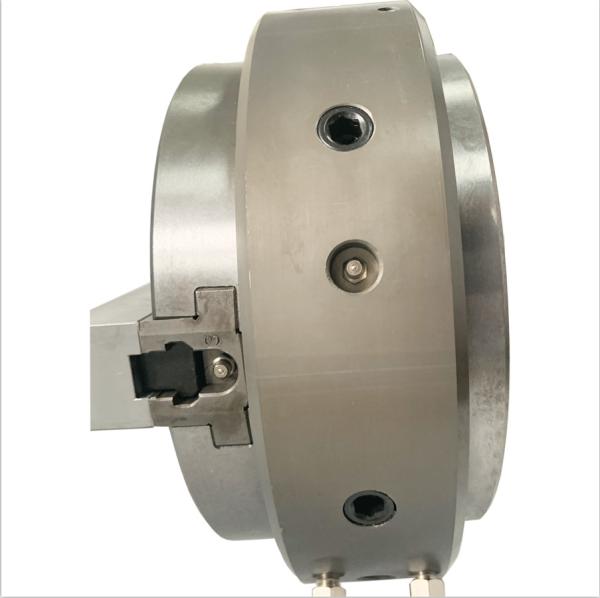

BK130TQ Stainless steel 3-Jaw Front mounted Pneumatic chuck for CNC
machine
1. Patent product, vertical with base plate.
2. The chuck is a built-in cylinder and is easily installed, with
no additional power source, and air enters from the side to achieve
clamping and
releasing. Multiple chucks can be installed in a workspace at the
same time to achieve multi-station machining, thus to improve the
production efficiency.
3.The chuck is suitable for drilling and tapping machines, milling
machines, vertical lathes and machining centers.
The whole installation process is quite easy.The chuck body is the
cylinder,with piston and inverted valve inside to achieve
super-long time pressure-keeping function (more than 24 hours).The
clamping and loosing movement is achieved by rotary air inlet at
the side.The machine will not work before cutting off the gas
supply.
The chuck boasts advantages of less weight,big hole diameter,high
stroke and high rotating speed,which is applicable for lathe,pipe
thread machine tool and welding equipments.
| Specfications | Jaw stroke | Max.Gripping force | Allowable pressure | Limited rotating speed | Clamping range | Net weight |
| BK80TQ | 3.2 | 3.3 | 0.4-0.9 | 4200 | 1.5-80 | 4.2 |
| BK130TQ | 3.7 | 15 | 0.4-0.9 | 2850 | 2-130 | 11 |
| BK160TQ | 4.2 | 28 | 0.4-0.9 | 2300 | 2-170 | 17.5 |
| BK200TQ | 4.7 | 41.7 | 0.4-0.9 | 2000 | 5-210 | 25.5 |
| BK250TQ | 5.4 | 58.2 | 0.4-0.9 | 1600 | 10-260 | 36.5 |
| BK320TQ | 8.5 | 86.8 | 0.4-0.9 | 1200 | 60-350 | 63 |
