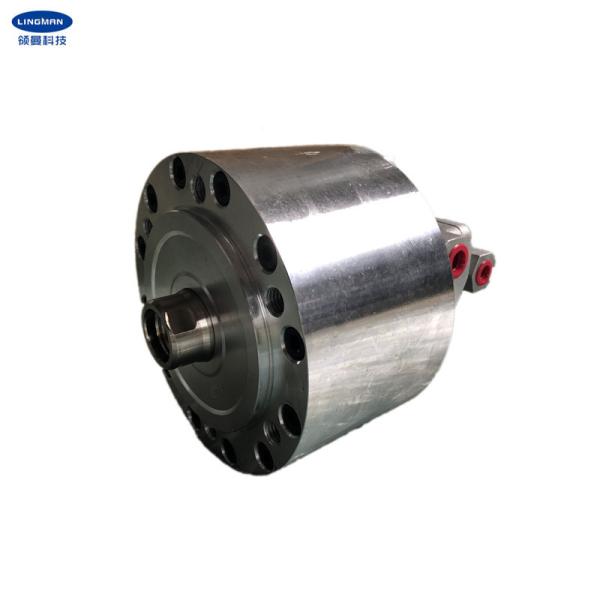

High Pressure Closed Center High Speed Rotary Hydraulic Cylinder
for CNC Lathe
1. Description
The characteristics of our hydraulic cylinders are made of dense
and light aluminum alloy. And it is low inertia and light weight.
Because of these characteristics, it can reduce the load on the machine
spindle.Solid rotary cylinder is high-speed continuous rotation and
balanced, long life, internal parts are all imported original
parts. High pressure type, long stroke type, and large bore type
can be customized according to clients' needs.
The hydraulic cylinder has a simple structure and reliable work.
When it is used to achieve reciprocating motion, the deceleration
device can be eliminated, and there is no transmission gap, and the
motion is stable. Therefore, it is widely used in various
mechanical hydraulic systems.
The hydraulic cylinder shows its stability and reduces the
mechanical load. So it is the priority for CNC lathe machines.
2. Performance Parameters
Model number | RH-200 |
Push side | 310cm2 |
Pull side | 286.3cm2 |
Stroke | 35mm |
Max. numbers of revolutions | 4000 r.p.m |
Max.working pressure | 4Mpa |
Weight | 20.4KG |
3. Dimensions
| Specifications | A | B | C | D | E | F | G | H | J | K | L | MH8 | N | 2-P |
| RH-200 | 200 | 35 | 245 | 145 | 120 | 55 | 35-70 | 130 | 231 | M36X60 | 6-M16X30 | 37 | 5 | PT3/8 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws |
