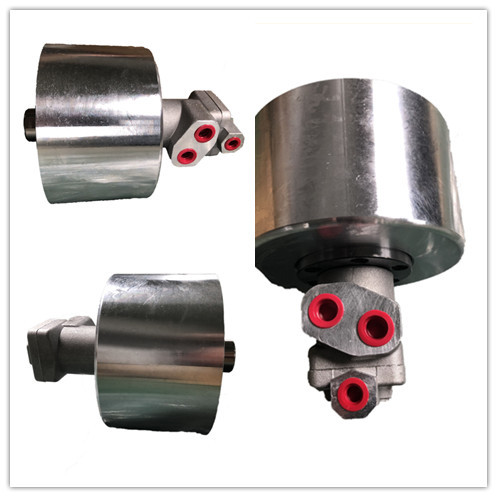

    High Speed Rotating Hydraulic Cylinder For CNC Lathe Chuck And Machine

    Ask Lasest Price
    Brand Name : Lingman
    Model Number : RH-100
    Price : USD 265-780 set
    Payment Terms : T/T, L/C
    Supply Ability : 200 sets per month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    High Speed Rotating Hydraulic Cylinder For CNC Lathe Chuck And Machine

    High Speed Rotating Hydraulic Cylinder for CNC Lathe Chuck and Machine

    1. Description

    Our company is a professional manufacture in producing chucks both for CNC lathe and laser cutting machine. Except the former priducts, other accessories for lathe machine, we also produce, like hydraulic cylinder, soft and hard jaws for chucks and so on. Customized accessories are also provided.

    Our hydraulic cylinder is made of dense, light aluminum alloy, low inertia, and light weight. which can reduce the load on the machine spindle.Solid rotary cylinder is high-speed continuous rotation and balanced, long life, internal parts are all imported original parts. High pressure type, long stroke type, and large bore type can be customized according to clients' needs.


    Under high-speed rotary state, the product exhibits stable performance and reduces the mechanical load. It is the first choice of accessories for numerical control machines and automatic lathes.



    2. Performance Parameters

    Model number

    RH-100

    Push side

    75.4cm2

    Pull side

    70.5cm2

    Stroke

    20mm

    Max. numbers of revolutions

    5500 r.p.m

    Max.working pressure

    3.5Mpa

    Weight

    4.9KG


    ​ 3. Dimensions


    High Speed Rotating Hydraulic Cylinder For CNC Lathe Chuck And Machine

    SpecificationsABCDEFGHJKLMH8N2-P
    RH-10010020135100803025-5089190M20X356-M10X20//PT3/8


    High Speed Rotating Hydraulic Cylinder For CNC Lathe Chuck And Machine
    4. Advantages

    a. Full stroke design
    b. Wide range of applications, diversification of processing profiles
    c. High repetitive positioning accuracy
    d. Low maintenance cost, long service life

    e. Multiple configurations are available
    e.1 Solid or hollow

    e.2 Comb-type or mortise-groove type claws


    5. Production Line
    High Speed Rotating Hydraulic Cylinder For CNC Lathe Chuck And Machine

    6. Our Service

    a. We are the direct factory with good price and fast lead time.
    b. Professional design team work with you.
    s. Professional QC team to guarantee the high quality.
    d. Providing OEM & ODM service.
