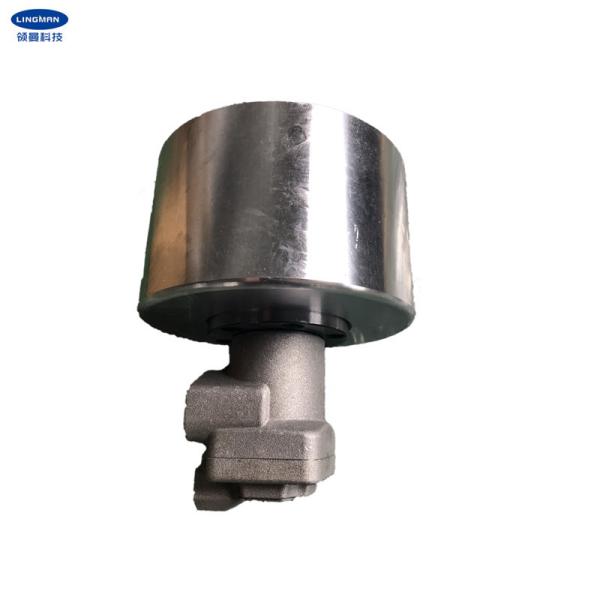

    Low Inertia Solid Center Rotary Hydraulic Chuck Cylinder

    Ask Lasest Price
    Brand Name : Lingman
    Model Number : RH-80
    Price : USD 265-780 set
    Payment Terms : T/T, L/C
    Supply Ability : 200 sets per month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    Low Inertia Solid Center Rotary Hydraulic Chuck Cylinder

    Low Inertia Solid Center Rotary Hydraulic Cylinder for Power Chuck and CNC Machine

    1. Description

    Our hydraulic cylinder is made of dense, light aluminum alloy, low inertia, and light weight. which can reduce the load on the machine spindle.Solid rotary cylinder is high-speed continuous rotation and balanced, long life, internal parts are all imported original parts. High pressure type, long stroke type, and large bore type can be customized according to clients' needs.


    Under high-speed rotary state, the product exhibits stable performance and reduces the mechanical load. It is the first choice of accessories for numerical control machines and automatic lathes.



    2. Performance Parameters

    Model number

    RH-80

    Push side

    47.7cm2

    Pull side

    42.8cm2

    Stroke

    15mm

    Max. numbers of revolutions

    6000 r.p.m

    Max.working pressure

    3.5Mpa

    Weight

    3.4KG


    ​ 3. Dimensions


    Low Inertia Solid Center Rotary Hydraulic Chuck Cylinder

    SpecificationsABCDEFGHJKLMH8N2-P
    RH-80801511290652530-4574175M16X306-M8X16//PT3/8


    Low Inertia Solid Center Rotary Hydraulic Chuck Cylinder
    4. Advantages

    a. Full stroke design
    b. Wide range of applications, diversification of processing profiles
    c. High repetitive positioning accuracy
    d. Low maintenance cost, long service life

    e. Multiple configurations are available
    e.1 Solid or hollow

    e.2 Comb-type or mortise-groove type claws


    5. Production Line
    Low Inertia Solid Center Rotary Hydraulic Chuck Cylinder

    6. Our Service

    a. We are the direct factory with good price and fast lead time.
    b. Professional design team work with you.
    s. Professional QC team to guarantee the high quality.
    d. Providing OEM & ODM service.
