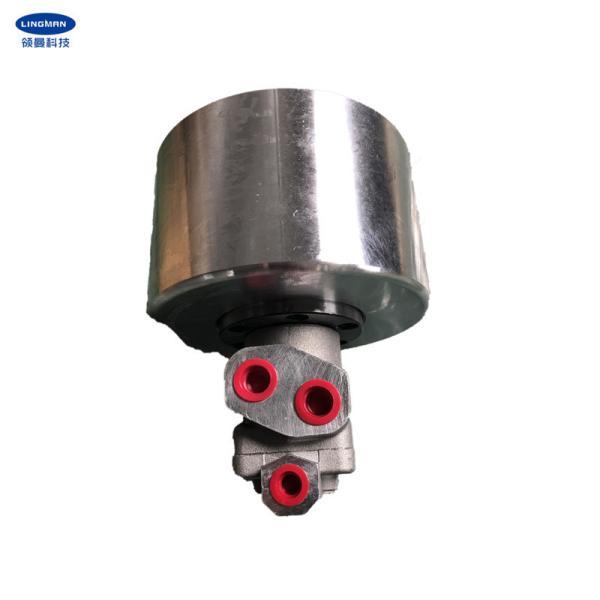

High Pressure Closed Center High Speed Rotary Hydraulic Cylinder
for CNC Lathe
1. Description
Dense, light aluminum alloy, low inertia, and light weight are the
obvious features of our hydraulic cylinder. So based on these
characteristics, it can reduce the load on the machine spindle. The
solid hydraulic cylinder can continuously rotate and balance at
high speed. All the internal parts are imported from origin. Except
standard type, high pressure type, long stroke type, and large bore
type all can be provided according to your requirements.
The hydraulic cylinder has a simple structure and reliable work.
When it is used to achieve reciprocating motion, the deceleration
device can be eliminated, and there is no transmission gap, and the
motion is stable. Therefore, it is widely used in various
mechanical hydraulic systems.
The hydraulic cylinder shows its stability and reduces the
mechanical load. So it is the priority for CNC lathe machines.
2. Performance Parameters
Model number | RH-150 |
Push side | 173.6cm2 |
Pull side | 157.7cm2 |
Stroke | 30mm |
Max. numbers of revolutions | 4000 r.p.m |
Max.working pressure | 4Mpa |
Weight | 11.5KG |
3. Dimensions
| Specifications | A | B | C | D | E | F | G | H | J | K | L | MH8 | N | 2-P |
| RH-150 | 150 | 30 | 190 | 130 | 110 | 45 | 25-55 | 105 | 206 | M30X45 | 6-M12X24 | 31 | 5 | PT3/8 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws |
