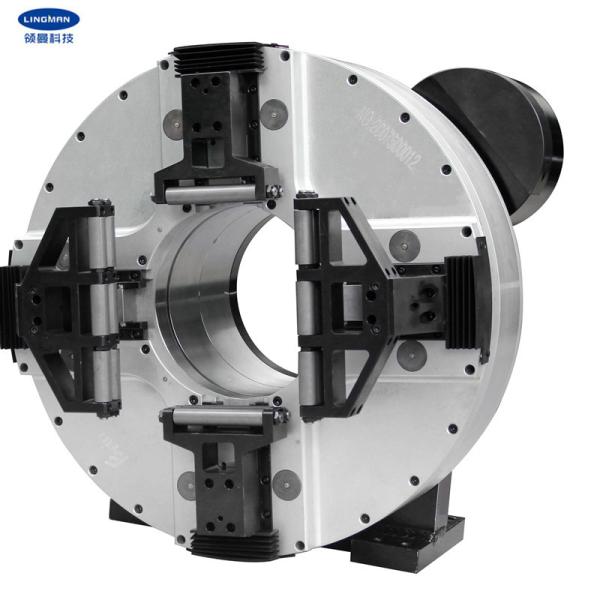

High Accuracy Full Stroke Pneumatic Chuck of Laser Pipe Cutting for
CNC Lathe Machine
1.Description
Chucks are especially designed for laser fiber cutting machine.
Actually, the chuck itself is able to be an independent rotating
spindle. In the meanwhile, it can clamp the work-piece tightly.
After fixing the product base, it just needs to equip with a proper
motor as well as connect it with the gear, connecting the air
source.
After the product base is fixed, to clamp and rotate the
work-piece, it only needs to equip with a matching motor and
connect it with the gear and meanwhile connect the compressed air
source(0.2-0.9Mpa). With cross roller bearing, it has longer service life, higher
rotary accuracy and repeated positioning accuracy than traditional
laser chuck, and greater clamping force than similar chucks in the
market.
2. Performance Parameters
Model number | G500D-230 |
| Claw stroke | 210mm |
| Maximum clamping force | 1.5KN |
| Alloable pressure | 0.2-0.9MPa |
| Limit speed | 200r/min |
| Clamping range | 10-230mm |
| Central height | 315mm |
| Rotational inertia | 4.6kg.m2 |
| Rotating part weight | 128kg |
| Whole unit weight | 245kg |
Note: above numbers are standard parameters. We can also design
products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G500D-230 | 420 | 315 | 600 | 615 | 220 | 60 | 380 | 361.5 | 230 | 265 | 250 | 470 | 6 | 12-M8 | 18X22 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
