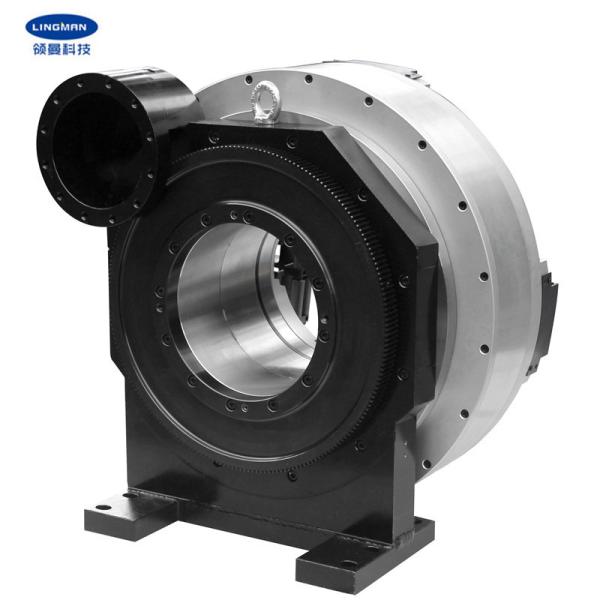

Single Bearing Chuck Pneumatic Rotary Chuck with Four Jaw for Laser
Pipe Cutting
1. Description
Our chucks are mainly made for laser pipe cutting machine. The
whole chuck can be used as an independent rotating spindle and the
work-piece can be clamped tightly and rotate at the same time.
After the product base is fixed, to clamp and rotate the
work-piece, it only needs to equip with a matching motor and
connect it with the gear and meanwhile connect the compressed air
source.
The chuck can work in full stroke without additional adjustment of
four claws. It can clamp all applicable pipe fittings and improve
production efficiency. In the case of low air pressure, a smaller
clamping force can be obtained, thereby satisfying the need of
processing thin-walled pipe fittings.
The product is widely used in special laser pipe cutters and other
pipe processing machine systems.
2. Performance Parameters
Model number | G800D-360 |
| Claw stroke | 260mm |
| Maximum clamping force | 4.1KN |
| Alloable pressure | 0.2-0.9MPa |
| Limit speed | 150r/min |
| Clamping range | 15-360mm |
| Central height | 425mm |
| Rotational inertia | 17.69kg.m2 |
| Rotating part weight | 251kg |
| Whole unit weight | 369kg |
Note: above numbers are standard parameters. We can also design
products according to clients' special requirements.

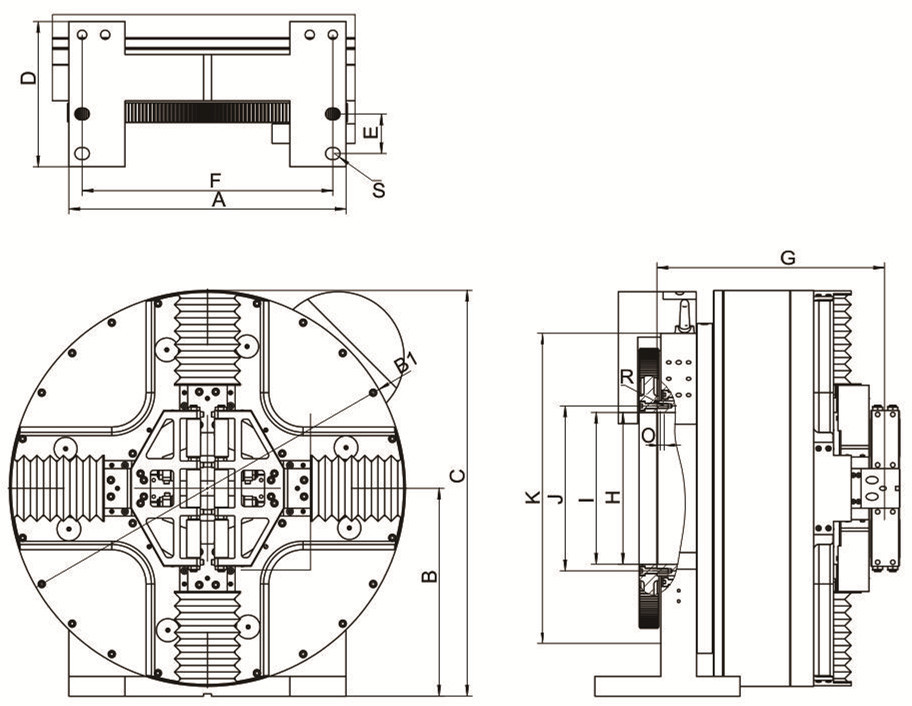

3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G800D-360 | 652 | 425 | 800 | 825 | 280 | / | 587 | 405.5 | 360 | 390 | 430 | 650 | 8 | 12-M12 | 18X20 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
