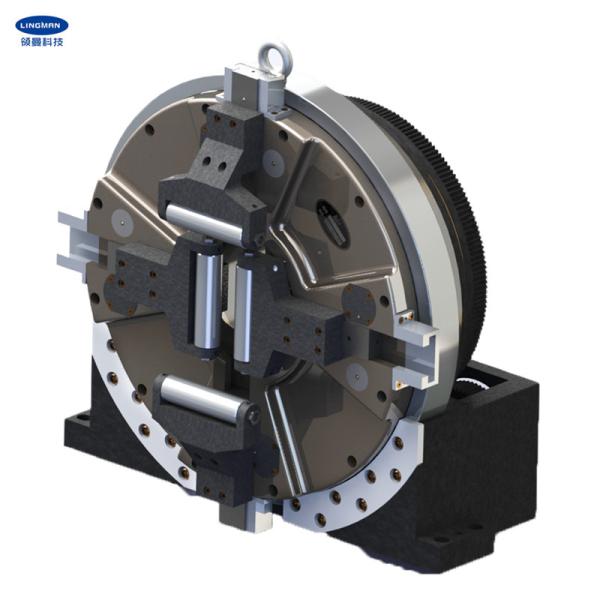

High Rotating Precision 4 Jaw Laser Chuck Through Hole Chuck for
Laser Cutting Machine
1.Description
This product is specially designed for laser cutting units, the
product itself can be used as an independent rotating spindle, with
a chuck in the middle that can clamp a work-piece tightly and
rotate at the same time. Fast clamping and loosening actions can be
achieved through the side rotating air intake, and the air source
can be disconnected for work.
After the product base is fixed, only the matching motor is added
and connected with the gear, and then the compressed air
source(0.1-0.9Mpa) is connected to achieve clamping work-piece and
driving the work-piece to rotate.
The chuck works along the full stroke, there is no need to adjust
the four-jaw position, a full range of applicable pipe parts can be
clamped, and the production efficiency is improved.
The product is widely used in special-purpose laser pipe cutting
machine and other pipe processing machine tool systems.
2. Performance Parameters
Model number | G400C-170 |
| Claw stroke | 165mm |
| Maximum clamping force | 1.36-2.45KN |
| Alloable pressure | 0.1-0.9MPa |
| Limit speed | 150r/min |
| Clamping range | 0-170mm |
| Central height | 315mm |
| Rotational inertia | 3.95kg.㎡ |
| Rotating part weight | 128.5kg |
| Whole unit weight | 210kg |
Note: above numbers are standard parameters. We can also design
products according to clients' special requirements.
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | O | R | S |
| G400C-170 | 600 | 280 | 590 | 602 | 100 | 60 | 570 | 273 | 170 | 235 | 250 | 400 | 10 | 8-M8 | 18X21 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
