PRODOCUT OVERWIEW:

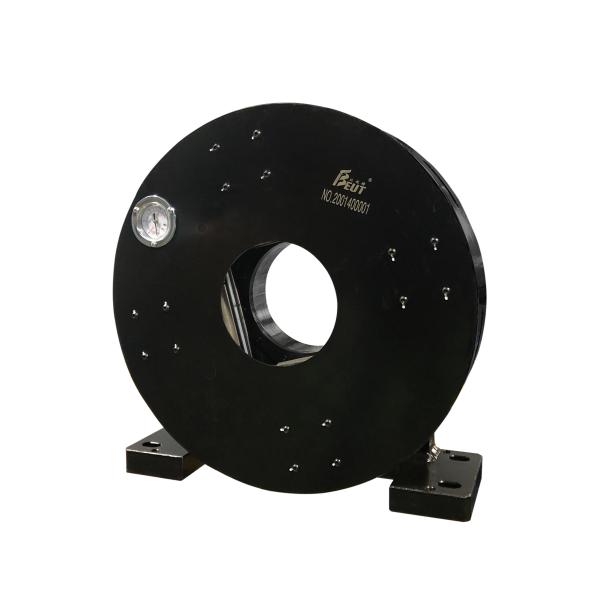

Pneumatic Full Stroke Laser Chuck , Four Jaw Independent Chuck
At present, it is widely used in CNC lathe modification, robot end
clamping, laser pipe cutting equipment, laser welding equipment,
spinning sealing equipment, tapping machine equipment and other
automatic special machine equipment. The hydraulic/pneumatic rotary
cylinder is built in the chuck, which eliminates the need to
install an additional rotary cylinder with a forced loosening and
clamping function, which is used in conjunction with automated
production. Easy to install, quick to build working clamping
system, pneumatic chuck cylinder body is enlarged, increase
clamping force, collet/sub-claw quick replacement design, high
working flexibility DGDR chuck with central through hole design,
with automatic feeding system Work, loading and unloading without
stopping, high production capacity suitable
| Model | Claw stroke | Maximum clamping stroke | Allowable pressure | Limit speed | Clamping range | Central height | Rotational inertia | Rotating part weight | Whole unit weight |
| G360J-110 | 110 | 0.8 | 0.4-0.9 | 500 | Φ3-Φ110 | 230 | 1.44 | 66 | 116 |
| G400J-165 | 140 | 1.2 | 0.4-0.9 | 500 | Φ20-Φ160 | 260 | 1.26 | 78 | 111 |
| G600J-225 | 220 | 1.7 | 0.4-0.9 | 500 | 0-Φ220 | 350 | 6.5 | 129 | 177 |
| G880J-355 | 180 | 4.5 | 0.4-0.9 | 500 | Φ20-Φ350 | 420 | 18.2 | 210 | 315 |
SIMILIAR PRODUCT:
WORK SHOP:
FAQ:
Q:What's the OEM serivce of OREE LASER?
A1:1. Customized and OEM orders are welcome if you need;
2. All the OEM services are free, customer only need to provide us
with your logo drawing,
function requirements, colors etc;
3. No MOQ required.
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft
case. In the middle, the machine is covered by foam, to protect
the machine from shaking. For the inside layer, the machine is
covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to
be safe, and our shipping agent have full experienced in safe
tranportation. We have exported to 80 countries worldwide. So
please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For
some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can
learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do
not try fix the machine by yourself or someone else. We will
response within 24 hours as quick as we can to solve it for you.
Plenty of technical support online is available; free global
regional training services.
Q: Are you factory or trading company?
A: We are an OEM factory with many experience, annual productivity
can reach 5,000,000 sets.
Q: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we
will give you support with our heart and soul.
Q: What's the QC system or OREE LASER?
A1. Skilled and strict Quality Inspection Team is available during
the material purchasing and production procedure;
2. Random sample testing by Quality Control;
3. Traceability for OREELASER machines;
4. Certified according to ISO 9001
