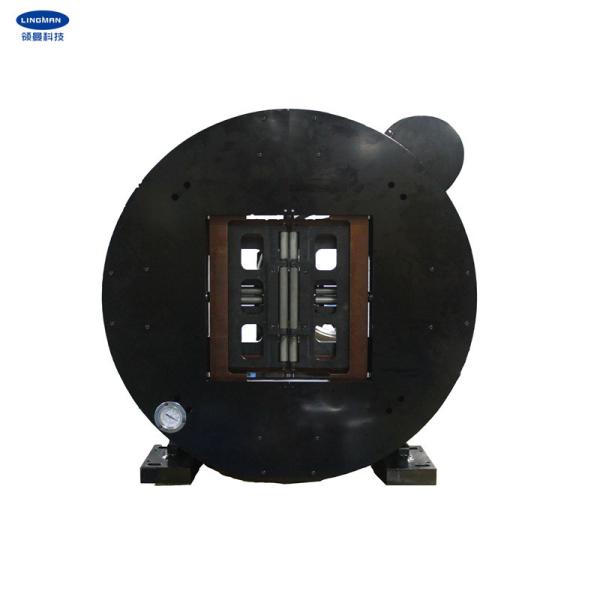

170mm Diameter 4 Jaws Pneumatic Power Chuck For Laser Tube Cutting
Equipment
1. Description
Our chuck is specially designed for laser tube cutting
equipment.The production itself can be used as an independent
rotating spindle, with a chuck that can firmly clamp the work-piece
while rotating. Fast clamping and loosening actions can be achieved
through the side rotating air intake, and the air source has to be
disconnected to work.
The chuck outputs through using a cylinder directly. It has high
mechanical efficiency, small energy loss, large outputting clamp
force, and stable clamping force. The structure of chuck is very
simple, and has few elements and components. In addition, its
weight is light, and has low failure rates, stable performance,
small moment of inertia and low energy consumption.
Compared with a round hole chuck, the size of square tube is
increased and the scope of use is expanded.
2. Performance Parameters
| G400JF-170 |
| 154mm |
| 1.2KN |
| 0.4-0.9MPa |
| 500r/min |
| 16-170mm |
| 260mm |
| 1.72g.m2 |
| 89kg |
| 144kg |
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | L | O | R | S |
| G400JF-170 | 500 | 260 | 510 | 515 | 164.5 | 100 | 440 | 175.5 | 250 | 325 | 355 | 30 | 170 | 16 | 12-M8 | 18 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available
e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Production Line
6. Our Service
1. We are the direct factory with good price and fast lead time.
2. Professional design team work with you.
3. Professional QC team to guarantee the high quality.
4. Providing OEM & ODM service.
