    High Efficiency Pneumatic Laser Chuck , Double Action Air Operated Chuck

    Ask Lasest Price
    Brand Name : Lingman
    Model Number : G400JF-170
    Price : USD 3800-6500 set
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per month
    Delivery Time : 15-20 work days
    • Product Details
    • Company Profile

    High Efficiency Pneumatic Laser Chuck , Double Action Air Operated Chuck

    High Efficiency Pneumatic Chuck Double Action Chuck for Laser Tube Cutting Equipment

    1. Description


    Our company is a professional supplier focusing on R&D, production and sales of various pneumatic chucks, electric chucks and other power chucks for more than 10 years.

    Our chuck is commonly made for laser fiber cutting machine. The whole chuck has a ability of using as an independent rotating spindle. In the meantime, the work-piece can be held tightly when rotating.
    Quick clamping and loosening actions can be made by side rotating air intake, and it can work with disconnecting air source.

    The chuck outputs through using a cylinder directly. It has high mechanical efficiency, small energy loss, large outputting clamp force, and stable clamping force.


    The structure of chuck is very simple, and has few elements and components. In addition, its weight is light, and has low failure rates, stable performance, small moment of inertia and low energy consumption.


    2. Performance Parameters


    • Model number
    G400JF-170
    • Claw stroke
    154mm
    • Maximunm clamping force
    1.2KN
    • Allowable pressure
    0.4-0.9MPa
    • Limit speed
    500r/min
    • Clamping range
    16-170mm
    • Central height
    260mm
    • Rotational inertia
    1.72g.m2
    • Rotating part weight
    89kg
    • Whole unit weight
    144kg

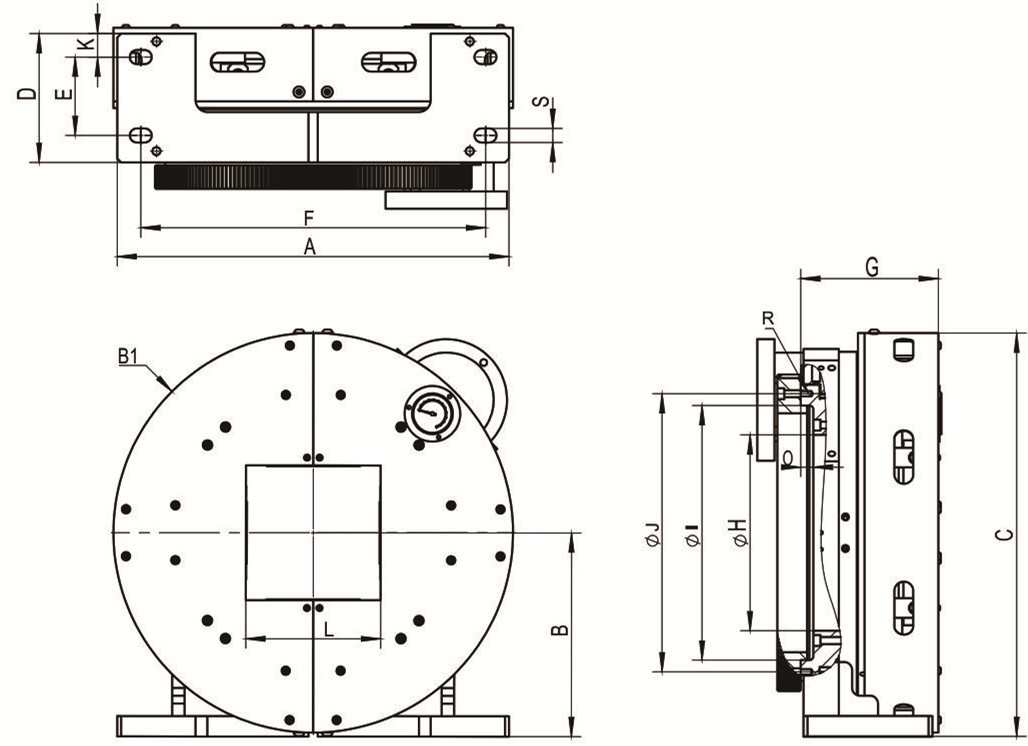

    ​ 3. Dimensions


    High Efficiency Pneumatic Laser Chuck , Double Action Air Operated Chuck

    SpecificationsABB1CDEFGHIJKLORS
    G400JF-170500260510515164.5100440175.5250325355301701612-M818

    High Efficiency Pneumatic Laser Chuck , Double Action Air Operated Chuck


    4. Advantages


    1. Full stroke design

    2. Wide range of applications, diversification of processing profiles

    3. High repetitive positioning accuracy
    4. Low maintenance cost, long service life
    5. Multiple configurations are available
    5.1 Solid or hollow

    5.2 Comb-type or mortise-groove type claws


    5. Production Line

    High Efficiency Pneumatic Laser Chuck , Double Action Air Operated Chuck

    6. Our Service


    1. We are the direct factory with good price and fast lead time.
    2. Professional design team work with you.

    3. Professional QC team to guarantee the high quality.

    4. Providing OEM & ODM service.
