Laser Rotary Pneumatic Chuck For Professional Laser Tube Cutting
Machine
1. Descripition

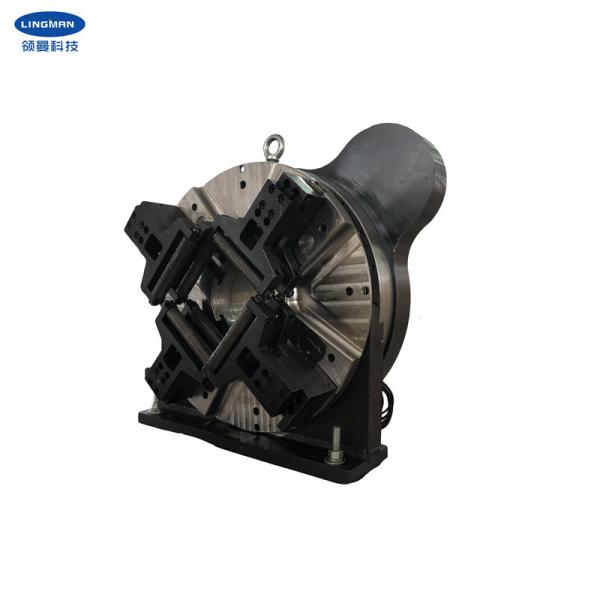

Our pneumatic chuck is mainly designed for laser tube cutting
machine. Pneumatic chuck is applied to clamp and loosen tubes and
feed tubes when cutting tube. Except round tubes, our pneumatic
chuck can also clamp rectanbular, square, H-shape and L-shape
tubes.
It is used base point positioning and it is convenient for the
adjustment of the main quipment and greatly shortens the debugging
time of the main equipment. And our design is full stroke design.
There's no need to adjust the jaw, it is easy to clamp and
centering, to achieve switching different pipe diameters, which
greatly saving clamping time.
The pneuamtic chuck can work in full stroke without additional
adjustment of four jaws.Adopting a fully closed structure, the
chuck has better stability and wear resistance.It has longer
service life, higher rotary accuracy and repeated positioning
accuracy becaused of the inner cross roller bearing. This pneumatic chuck is widely applied to
professional pipe cutting machine and other pipe processing machine
system.
2. Performance Parameters
| G500DC-230 |
| 220mm |
| 1.5KN |
| 0.3-0.9MPa |
| 150r/min |
| 8-228mm |
| 315mm |
| 4.18Kg.m2 |
| 124kg |
| 245kg |
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | R | S |
| G500DC-230 | 420 | 315 | 600 | 615 | 220 | 60 | 380 | 368 | 230 | 265 | 12-M8 | 18X22 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available
e. 1 Solid or hollow
e. 2 Comb-type or mortise-groove type claws |
5. Production Line
