    Double Acting Pneumatic Laser Rotary Chuck To Clamp Round Tubes

    Ask Lasest Price
    Brand Name : Lingman
    Model Number : G600J-225
    Price : USD 3400-3800/set
    Payment Terms : T/T, L/C
    Supply Ability : 500 sets per month
    Delivery Time : 15-20 work days
    • Product Details
    • Company Profile

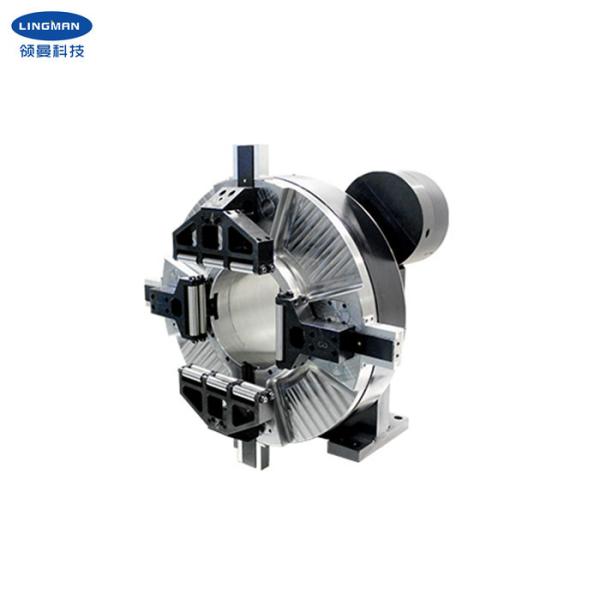

    Double Acting Pneumatic Laser Rotary Chuck To Clamp Round Tubes

    Double-acting Pneumatic Rotary Chuck For Laser Cutting Machine
    1. Descripition

    Our laser chuck is specially designed for laser pipe cutting machine. This chuck is mainly used to clamp round tubes with different sizes. Its clamping range is Φ0-220mm and central height is 350mm. It can meet can meet normal pipe cutting needs.

    The chcuk outputs by using a cylinder directly, the mechanical efficiency is high, the energy loss is small, the output clamping force is large, and the clamping force is stable. Because the cylinder is used to clamp the work-piece directly, the working range is wide. The cylinder is used for outputting directly, the output force and the air pressure are in linear proportion, which makes it easy to achieve software control.


    This laser chuck has a simple structure, few components, light weight, low failure rate, stable performance, small moment of inertia and low energy consumption. The axial dimension of the chuck is small, and the cost for realizing the zero tailings si lower. At the same time, it also saves the cost of production. This laser chuck is widely used in tube-sheet itegrated machines, like model 3105.


    2. Performance Parameters
    • Model number
    G600J-225
    • Claw stroke
    220mm
    • Maximunm clamping force
    1.7KN
    • Allowable pressure
    0.4-0.9MPa
    • Limit speed
    500r/min
    • Clamping range
    0-220mm
    • Central height
    350mm
    • Rotational inertia
    6.5Kg.m2
    • Rotating part weight
    129kg
    • Whole unit weight
    177kg


    3. Dimensions
    Double Acting Pneumatic Laser Rotary Chuck To Clamp Round Tubes

    SpecificationsABB1CDEFGHIRS
    G600J-22552035068069017912046018522528012-M818


    4. Advantages

    a. Full stroke design
    b. Wide range of applications, diversification of processing profiles
    c. High repetitive positioning accuracy
    d. Low maintenance cost, long service life

    e. Multiple configurations are available
    e. 1 Solid or hollow

    e. 2 Comb-type or mortise-groove type claws



    5. Production Line
    Double Acting Pneumatic Laser Rotary Chuck To Clamp Round Tubes

    6. Our Service

    a. We are the direct factory with good price and fast lead time.
    b. Professional design team work with you.
    c. Professional QC team to guarantee the high quality.
    d. Providing OEM & ODM service.
