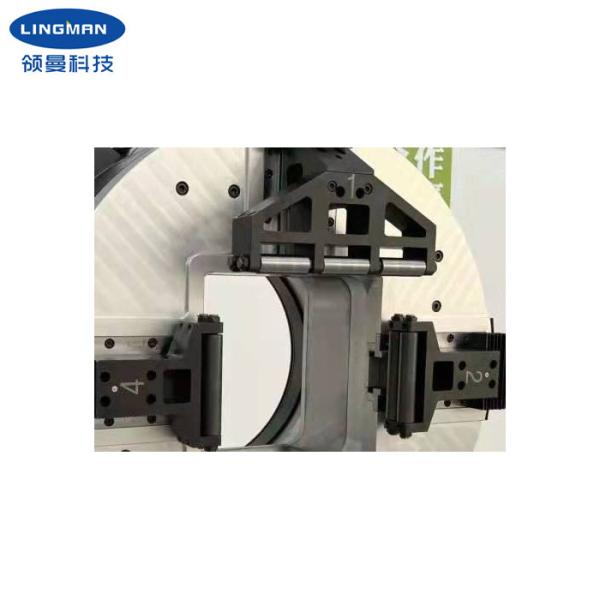

Laser Pneumatic Chuck Square Tube Chuck For Laser Pipe Cutting
Machine
Descripition
Our pneumatic chuck is suitable for clamping various pipe fittings
for the professional pipe cutters and tube-plate machine, and is
most suitable for the cutting processing of all kinds of round
tubes, square tubes, rectangular tubes and oval tubes, just making
slight modification of the jawsw to cut tubes of all shapes.
When the laser pipe cutting machine cuts and processes pipe
fittings, it is necessary to clamp and fix the pipe fittings with a
chuck. The full-stroke chuck generally has two sets of jaws that
can be opened and closed respectively. However, when it is used to
clamp thin pipes or fragile pipe fittings, the stroke of the jaws
is not easy to control. The processed pipe fittings are flattened
or broken and the processed pipe fittings are scrapped. In response
to this problem, the DF series full-stroke square hole chuck -
G620DF-245 chuck is launched.
| Performance parameters |
Model | G620DF-245 |
| Diameter/Jaw stroke | 236MM |
| Max. clamping force | 210KG/0.6MPA |
| Allowable pressure | 0.2-0.9MPA |
| Limit speed | 150R/MIN |
| Clamping range | Φ6-Φ242MM |
| Central height | 315MM |
| Moment of inertia | 5.2KG/M2 |
| Weight of rotating part | 120KG |
| Whole weight | 250KG |
| Dimensions |
| Model | A | B | B1 | C | D | E | F | G | H | J | S |
| G620DF-245 | 420 | 315 | 624 | 662 | 220 | 60 | 380 | 403.5 | 245X245 | 444.5 | 18X22 |
Advantages
1. High transmission efficiency and synchronization accuracy
2. In the case of the same size of the chuck, the applicable size
range of the processed pipe is wider. It can be effectively used to
clamp thin pipes or fragile pipe fittings to prevent flattening.
Market demand
3. The installation position of the reducer can be adjusted
arbitrarily
4. Reduce the difficulty of processing and manufacturing, which is
conducive to mass production; better dust-proof effect and stronger
pollution resistance
