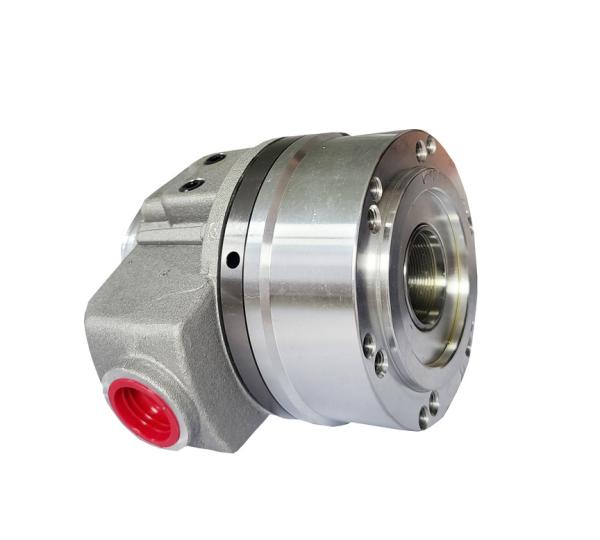

Hydraulic Rotary Cylinder High Pressure for CNC Lathe
1. Description
Dense, light aluminum alloy, low inertia, and light weight are the
obvious features of our hydraulic cylinder. So based on these
characteristics, it can reduce the load on the machine spindle. The
solid hydraulic cylinder can continuously rotate and balance at
high speed. All the internal parts are imported from origin. Except
standard type, high pressure type, long stroke type, and large bore
type all can be provided according to your requirements.
The hydraulic cylinder has a simple structure and reliable work.
When it is used to achieve reciprocating motion, the deceleration
device can be eliminated, and there is no transmission gap, and the
motion is stable. Therefore, it is widely used in various
mechanical hydraulic systems.
The hydraulic cylinder shows its stability and reduces the
mechanical load. So it is the priority for CNC lathe machines.
2. Performance Parameters
Model number | RH-150 |
Push side | 173.6cm2 |
Pull side | 157.7cm2 |
Stroke | 30mm |
Max. numbers of revolutions | 4000 r.p.m |
Max.working pressure | 4Mpa |
Weight | 11.5KG |
3. Dimensions
| Specifications | A | B | C | D | E | F | G | H | J | K | L | MH8 | N | 2-P |
| RH-150 | 150 | 30 | 190 | 130 | 110 | 45 | 25-55 | 105 | 206 | M30X45 | 6-M12X24 | 31 | 5 | PT3/8 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws |
5. Production Line
6. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| s. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
7. FAQ
Q:What's the OEM serivce of OREE LASER?
A:1. Customized and OEM orders are welcome if you need;
2. All the OEM services are free, customer only need to provide us
with your logo drawing,
function requirements, colors etc;
3. No MOQ required.
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft
case. In the middle, the machine is covered by foam, to protect
the machine from shaking. For the inside layer, the machine is
covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to
be safe, and our shipping agent have full experienced in safe
tranportation. We have exported to 80 countries worldwide. So
please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For
some small parts installation, we will send detail training
video, user's manual along with the machine. 95% customers can
learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do
not try fix the machine by yourself or someone else. We will
response within 24 hours as quick as we can to solve it for you.
Plenty of technical support online is available; free global
regional training services.
Q: Are you factory or trading company?
A: We are an OEM factory with many experience, annual productivity
can reach 5,000,000 sets.
Q: What's your MOQ?
A: We don't have MOQ. No matter 1set order or 100sets order, we
will give you support with our heart and soul.
Q: What's the QC system or OREE LASER?
A1. Skilled and strict Quality Inspection Team is available during
the material purchasing and production procedure;
2. Random sample testing by Quality Control;
3. Traceability for OREELASER machines;
4. Certified according to ISO 9001
