    Low Inertia And Light Weight Hydraulic Rotary Cylinder Rotary Attachment

    Ask Lasest Price
    Brand Name : Lingman
    Model Number : RH-65
    Price : USD 68-188 set
    Payment Terms : T/T, L/C
    Supply Ability : 200 sets per month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    Low Inertia And Light Weight Hydraulic Rotary Cylinder Rotary Attachment

    Low Inertia And Light Weight Hydraulic Rotary Cylinder Rotary Attachment

    1. Description

    This hydraulic cylinder is made of dense, light aluminum alloy, and low inertia, light weight, which can reduce the load on the main shaft of the machine.
    Solid rotary cylinder is high-speed continuous rotation and balanced, long life, internal parts are all imported original parts.
    High pressure type, long stroke type, and large bore type can be customized according to clients' needs.
    Under high-speed rotary state, the product exhibits stable performance and reduces the mechanical load. It is the first choice of accessories for numerical control machines and automatic lathes.


    2. Performance Parameters

    Model number

    RH-65

    Push side

    31.0cm²

    Pull side

    27.9cm²

    Allowable pressure

    3.5MPa

    Limit speed

    6000r.p.m.

    Stroke

    15mm

    Weight

    2.9KG

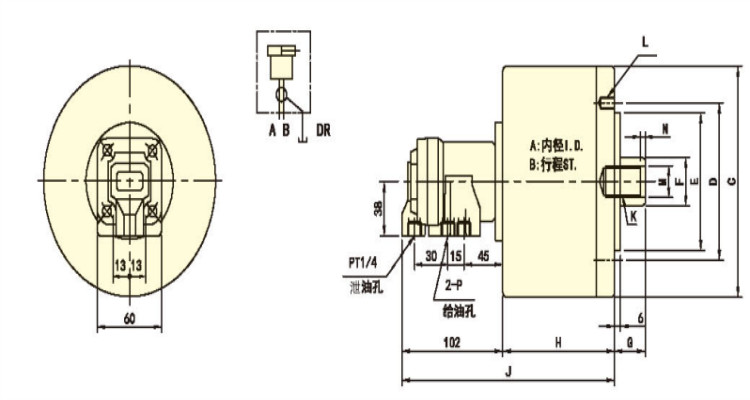

    ​ 3. Dimensions


    Low Inertia And Light Weight Hydraulic Rotary Cylinder Rotary Attachment

    Low Inertia And Light Weight Hydraulic Rotary Cylinder Rotary Attachment


    4. Advantages

    a. Full stroke design
    b. Wide range of applications, diversification of processing profiles
    c. High repetitive positioning accuracy
    d. Low maintenance cost, long service life

    e. Multiple configurations are available
    e.1 Solid or hollow

    e.2 Comb-type or mortise-groove type claws


    5. Our Service

    a. We are the direct factory with good price and fast lead time.
    b. Professional design team work with you.
    s. Professional QC team to guarantee the high quality.
    d. Providing OEM & ODM service.


    6. Production Line
