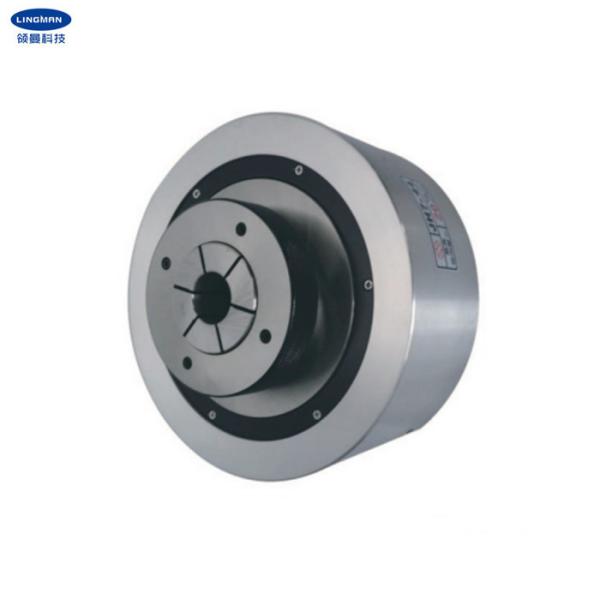

JH5-25 Rotary Pneumatic Hydraulic Collet Chuck for Laser Cutting
CNC Machine
1. Description
This kind of collet chuck has internal mechanism in the cylinder,
there is no need to instal the rear rotary cylinder. The clamping
accuracy is between 0.05-0.08mm (the end face is measured at 10mm),
but do not reduce the inner hole of the spindle. With light alloy
ctlinder body, light weight, good heat dissipation, so the
temperature can be effectively reduced. The air pressure is soft so
that the workpiece is not deformed. The power source can use
hydraulic or air pressure. The collet chuck adopts strong hydraulic
grip, which can be widely used in heavy pipe cutting. This collet
chuck is suitable for laser cutting, NC, CNC, 4.5 axis.
2. Performance Parameters
Model number | JH5-25 |
Push side | 56cm2 |
Pull side | 16.5cm2 |
Allowable pressure | 2.0/0.8MPa |
Limit speed | 1800r.p.m. |
Max. clamping force | 8.5/3.3 KN |
Weight | 6.3KG |
3. Dimensions
| Specification | A | B | C | D | E | F | G | L | I | H |
| JH5-25 | 135 | 100 | 26 | 45 | 68 | 138 | 4 | 105 | 115 | 18 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws |
