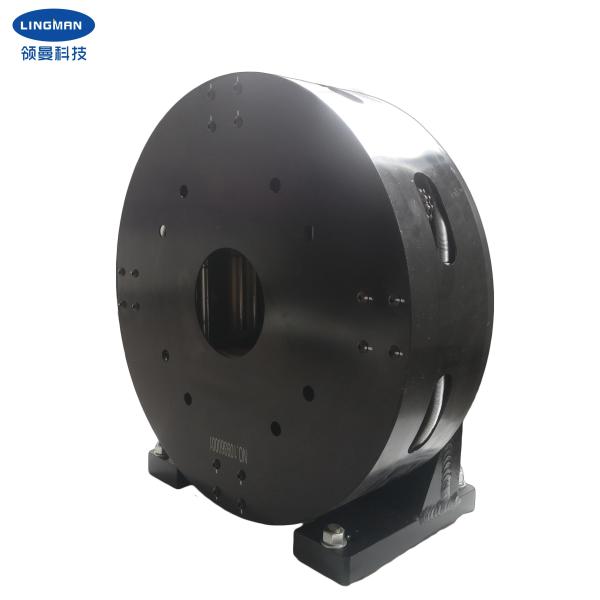

Full Stroke Laser Rotary Chuck For Laser Pipe Cutting Machine
1. Descripition
Our laser chuck is pneumatic type and is mainly used in laser pipe
cutting machine, plasma cutting machine and welding machine. It can
support different shapes of pipes, such as round pipe, square pipe,
rectangular pipe, L-shape pipe and H-shape pipe. It improves the
cutting accuracy, rotation accuracy and repeated positioning
accuracy, compared with traditional chuck. The application of laser
chuck makes laser cutting more efficient and quickly.
It can realize quick clamping and loosening by rotating air intake
from the side, disconnet the air source before working. It is
controlled by switching single and double cylinders, which produces
differentc clamping forces, which has more advantages of clamping
thin-walled tubes and heavy-duty pipes. Becaus of the long length
of the parts processed by the cutter, the main chuck used as the
head position of laser cutting and feed chuck matched with it are
usually installed in pairs on the machine.This penumatic chuck is
widely used in special laser pipe cutters and other pipe processing
machine system.
2. Performance Parameters
| G360J-110 |
| 110mm |
| 0.8KN |
| 0.25-0.9MPa |
| 200r/min |
| 3-110mm |
| 230mm |
| 1.44Kg.m2 |
| 66kg |
| 116kg |
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | R | S |
| G360J-110 | 320 | 230 | 435 | 447.5 | 220 | 196 | 270 | 197.5 | 110 | 122 | 12-M8 | 14 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available
e. 1 Solid or hollow
e. 2 Comb-type or mortise-groove type claws |
