1. Description
This hydraulic collet chuck can be used for internal expansion and
external clamping. Its construction is of integral heat-treated
steel. The bearing has no load, the chuck has good high-speed
performance and long service life. Still cold when spinning. Forced
opening of the collet is a two-way power. When the pressure is
interrupted, the chuck locks itself and remains clamped.
Installation is simple and convenient, just connect the flange
directly to the spindle. It can be connected to the machine system
through a three-point combination valve. The collet does not
retract and can be controlled normally. The body length accuracy is
within 0.01mm. It is an ideal power source for pull-back power chucks and simple
clips, and can also be used as a power source for other devices.
2. Performance Parameters
| JAB-60 |
| 225.8cm² |
| 198.9cm² |
| 0.4-0.7MPa |
| 3000r/min |
| 62mm |
| 56mm |
| 7.8/7.2 |
| 4-M10 |
| 20C |
| 2-M5 |

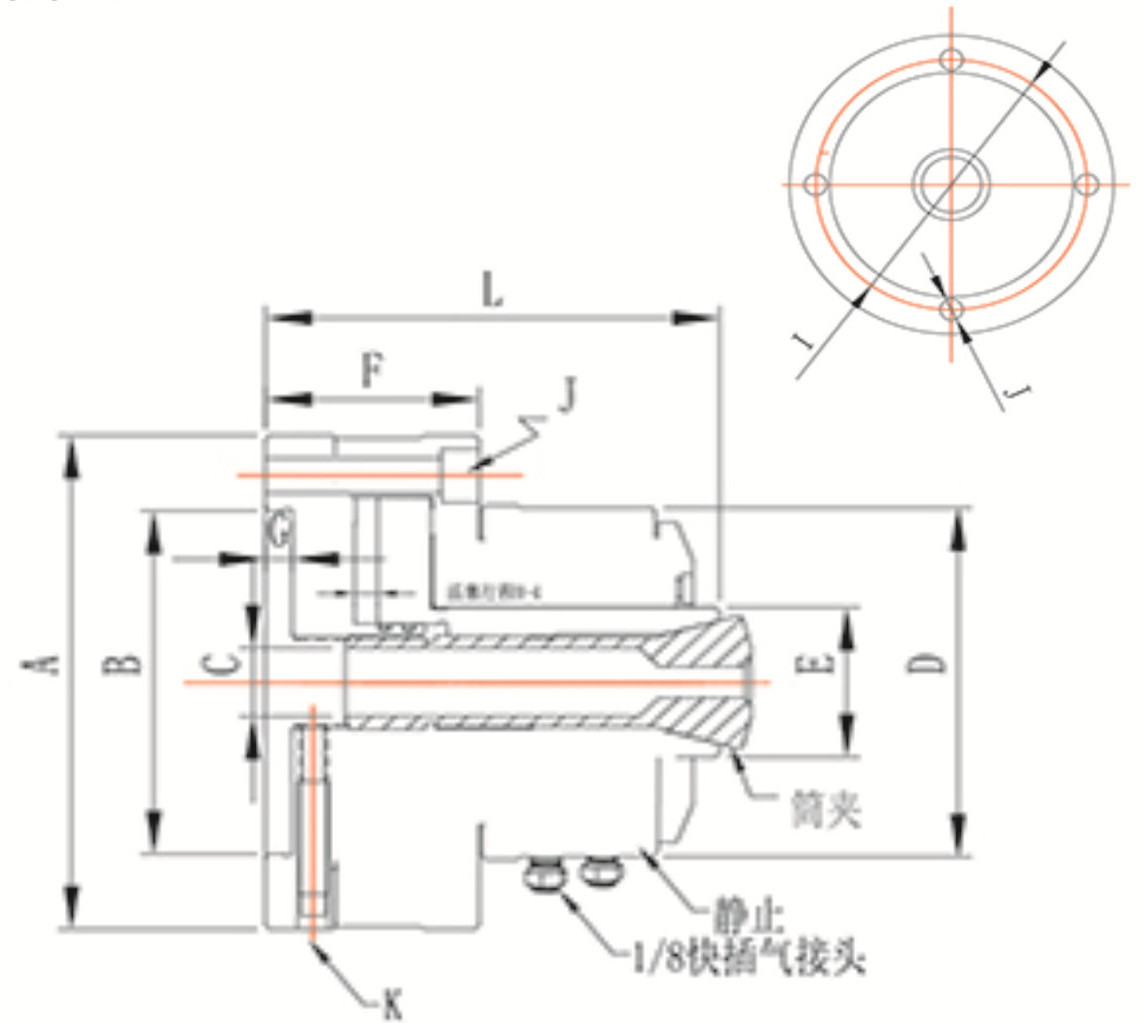

3. Dimensions
| Specifications | A | B | C | D | E | F | G | H | I | L |
| JAB-60 | 218 | 170 | 62 | 175 | 94 | 56 | 5 | 11 | 198 | 125 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws |
5. Our Service
| a. We are the direct factory with good price and fast lead time. |
| b. Professional design team work with you. |
| c. Professional QC team to guarantee the high quality. |
| d. Providing OEM & ODM service. |
