    Low Inertia Solid Center Rotary Hydraulic Chuck Cylinder For CNC Lathe

    Ask Lasest Price
    Brand Name : Lingman
    Model Number : RH-150
    Price : USD 265-780 set
    Payment Terms : T/T, L/C
    Supply Ability : 200 sets per month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

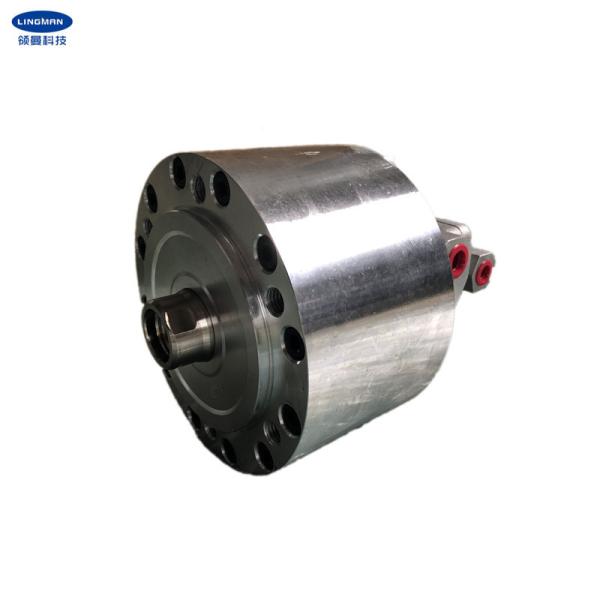

    Low Inertia Solid Center Rotary Hydraulic Chuck Cylinder For CNC Lathe

    Low Inertia Solid Center Rotary Hydraulic Chuck Cylinder For CNC Lathe

    1. Description

    Our hydraulic cylinder block is made of aluminum alloy and is of lightweight design with little inertia and light weight, which can greatly reduce the load on the spindle of the machine tool. Solid rotary cylinder high-speed continuous rotation and balance, internal parts are all imported original. This ensures long cylinder life due to the high quality cylinder seal and high accuracy. Can be customized according to customer needs high pressure type, long stroke type, large caliber type.
    Under the condition of high speed rotation, product performance is stable and mechanical load is reduced. It is the first choice for nc machine tools and automatic lathes.



    2. Performance Parameters

    Model number

    RH-150

    Push side

    173.6cm2

    Pull side

    157.7cm2

    Stroke

    30mm

    Max. numbers of revolutions

    4000 r.p.m

    Max.working pressure

    4.0Mpa

    Weight

    11.5KG


    ​ 3. Dimensions


    Low Inertia Solid Center Rotary Hydraulic Chuck Cylinder For CNC Lathe

    SpecificationsABCDEFGHJKLMH8N2-P
    RH-150150301901301104525-55105206M30X4512-M12X24//PT3/8


    Low Inertia Solid Center Rotary Hydraulic Chuck Cylinder For CNC Lathe
    4. Advantages

    a. Full stroke design
    b. Wide range of applications, diversification of processing profiles
    c. High repetitive positioning accuracy
    d. Low maintenance cost, long service life

    e. Multiple configurations are available
    e.1 Solid or hollow

    e.2 Comb-type or mortise-groove type claws


    5. Our Service

    a. We are the direct factory with good price and fast lead time.
    b. Professional design team work with you.
    s. Professional QC team to guarantee the high quality.
    d. Providing OEM & ODM service.


    6. Production Line
    Low Inertia Solid Center Rotary Hydraulic Chuck Cylinder For CNC Lathe
