    G700D-270 Full Stroke Pneumatic Main 4 Jaw Rotary Laser Chuck For Tube Cutter

    Ask Lasest Price
    Brand Name : Lingman
    Model Number : G700D-270
    Price : USD 4800-5200 set
    Payment Terms : T/T, L/C
    Supply Ability : 100 sets per month
    Delivery Time : 10-15 work days
    • Product Details
    • Company Profile

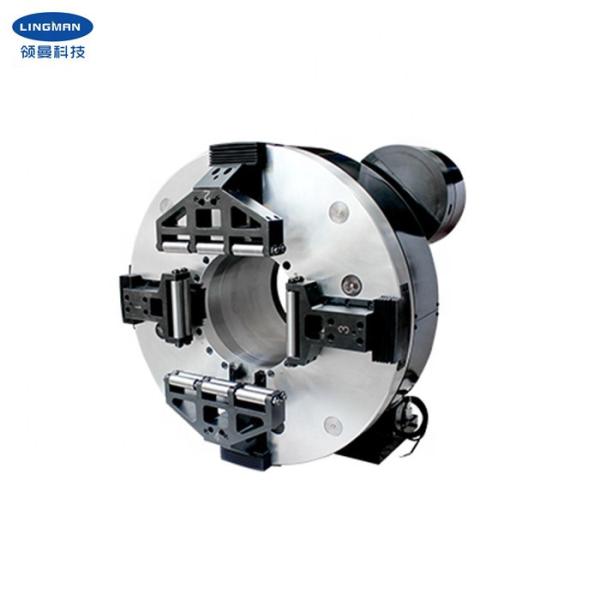

    G700D-270 Full Stroke Pneumatic Main 4 Jaw Rotary Laser Chuck For Tube Cutter

    Single Bearing Full Stroke Pneumatic 4-Jaw Rotary Laser Chuck

    1. Description

    Our company is a company with 15 years of experience in professional development of various chucks. The chuck is a four-jaw full stroke master chuck designed for laser pipe cutting equipment. The chuck itself can work as an independent rotating spindle. After fixing the base of the product, just add the supporting motor and gear connection, and then connect the compressed air source (0.3-0.9mpa) to clamp the workpiece and drive the workpiece to rotate. Chuck full stroke operation, no need to adjust the position of the four PAWS. Chuck adopts fully enclosed structure, equipped with cross roller bearings. Compared with similar products on the market, the chuck has higher rotation accuracy and repetition accuracy, as well as higher clamping force.
    The products can be widely used in special laser pipe cutting machine and other pipe processing systems.

    2. Performance Parameters


    Model number

    G700D-270
    Claw stroke240mm
    Maximum clamping force3.15KN
    Alloable pressure0.3-0.9MPa
    Limit speed120/min
    Clamping range15-265mm
    Central height375mm
    Rotational inertia

    10.9kg.㎡

    Rotating part weight215kg
    Whole unit weight307kg

    Note: above numbers are standard parameters. We can also design products according to clients' special requirements.


    3. Dimensions


    G700D-270 Full Stroke Pneumatic Main 4 Jaw Rotary Laser Chuck For Tube Cutter

    SpecificationsABB1CDEFGHIJKORS
    G700D-270665375700725265220610380270330296558512-M1018X28


    4. Advantages


    a. Full stroke design
    b. Wide range of applications, diversification of processing profiles
    c. High repetitive positioning accuracy
    d. Low maintenance cost, long service life

    e. Multiple configurations are available

    e.1 Solid or hollow

    e.2 Comb-type or mortise-groove type claws


    5. Our Service


    a. We are the direct factory with good price and fast lead time.
    b. Professional design team work with you.
    c. Professional QC team to guarantee the high quality.
    d. Providing OEM & ODM service.

    6. Production Line

    G700D-270 Full Stroke Pneumatic Main 4 Jaw Rotary Laser Chuck For Tube Cutter
