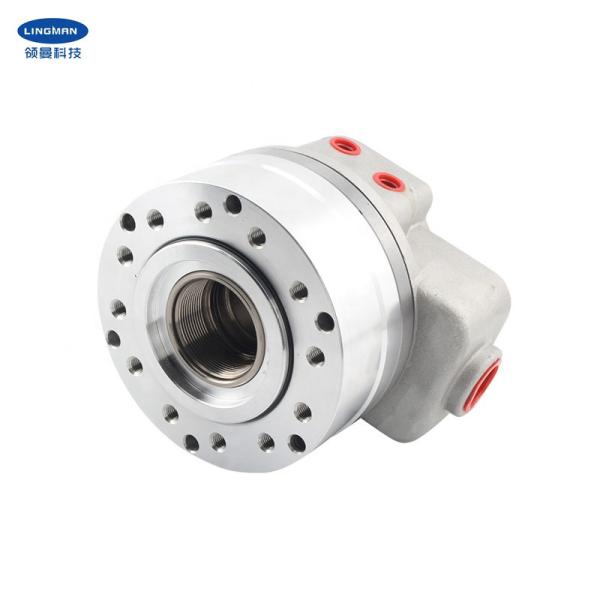

    Through Hole Type TH Series Rotary Hydraulic Lathe Cylinder Attachment

    Through-Hole Type TH Series Rotary Hydraulic Lathe Cylinder Attachment

    1. Description

    This kind of cylinder is a light rotary cylinder with through hole, which can process long shaft parts. Check valve built-in self-locking mechanism to prevent pipe damage and pressure source loss, to ensure the stability of workpiece clamping. The cylinder is safe and reliable, high speed, long service life, all the internal parts are imported original. And can be customized according to the different requirements of customers.
    The hydraulic rotary cylinder is a tight fitting that uses hydraulic pressure in a small space to achieve a very high torque. Although the power is high they can still be easily controlled. In order to achieve effective and reliable functions, high manufacturing accuracy is required. The interior of the cylinder is well protected and can be completely dust-proof and moisture-proof.
    Large rotary through hole hydraulic cylinder can accommodate a full range of multi-size pipelines.


    2. Performance Parameters

    Model number

    TH-428

    Push side

    53.2cm²

    Pull side

    50.5cm²

    Allowable pressure

    4.0MPa

    Limit speed

    8000r.p.m.

    Stroke

    10mm

    Weight

    5.8KG


    ​ 3. Dimensions


    Through Hole Type TH Series Rotary Hydraulic Lathe Cylinder Attachment


    4. Advantages

    a. Full stroke design
    b. Wide range of applications, diversification of processing profiles
    c. High repetitive positioning accuracy
    d. Low maintenance cost, long service life

    e. Multiple configurations are available
    e.1 Solid or hollow

    e.2 Comb-type or mortise-groove type claws


    5. Our Service

    a. We are the direct factory with good price and fast lead time.
    b. Professional design team work with you.
    s. Professional QC team to guarantee the high quality.
    d. Providing OEM & ODM service.


    6. Production Line
    Through Hole Type TH Series Rotary Hydraulic Lathe Cylinder Attachment
