    W220J Lever Type Medium Solid Four Jaw Double Acting Feeding Chuck

    Ask Lasest Price
    Brand Name : Lingman
    Model Number : W220J
    Price : USD 2500-2800/set
    Payment Terms : T/T, L/C
    Supply Ability : 50 sets per month
    Delivery Time : 15-20 work days
    • Product Details
    • Company Profile

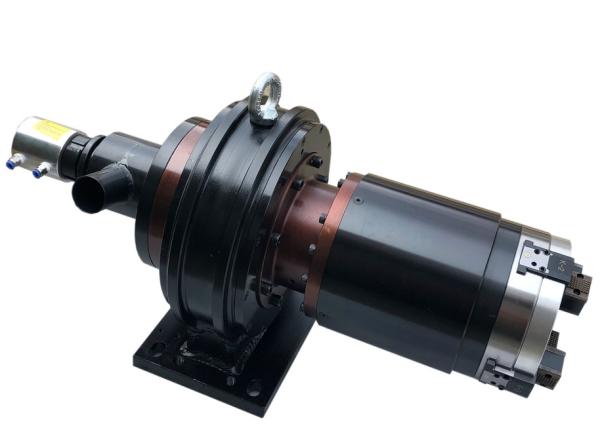

    W220J Lever Type Medium Solid Four Jaw Double Acting Feeding Chuck

    W220J Lever Type Medium-Solid Four-Jaw Double-Acting Feeding Chuck

    1. Description


    This product is specially designed for laser tube cutting equipment. The product itself can be used as an independent rotating spindle, and a chuck in it can firmly clamp workpiece and rotate simultaneously. The quick clamping and loosening actions can be realized by side rotation and air intake. The chuck can work in full stroke without additional adjustment of four claws. It can clamp all applicable pipe fittings and improve production efficiency. The product is widely used in special laser pipe cutters and other pipe processing machine systems.


    If you need customzied chuck, we also can provide customized plan according to your need.


    2. Performance Parameters


    • Model number
    W220J
    • Claw stroke
    70mm
    • Maximunm clamping force
    4.4KN
    • Allowable pressure
    0.3-1.0MPa
    • Limit speed
    500r/min
    • Clamping range
    10-210mm
    • Central height
    200mm
    • Rotational inertia
    0.7kg.m2
    • Rotating part weight
    102kg
    • Whole unit weight
    140kg

    3. Dimensions


    W220J Lever Type Medium Solid Four Jaw Double Acting Feeding Chuck

    SpecificationsABB1CDEFGIJLMNOPQRST
    W220J300200204417200150250813.516019820364522M88-M1018420.5


    4. Advantages


    a. Full stroke design
    b. Wide range of applications, diversification of processing profiles
    c. High repetitive positioning accuracy
    d. Low maintenance cost, long service life

    e. Multiple configurations are available
    e.1 Solid or hollow

    e.2 Comb-type or mortise-groove type claws


    5. Production Line

    W220J Lever Type Medium Solid Four Jaw Double Acting Feeding Chuck
