Brand Name : | Lingman |
Model Number : | Laser Chuck Spur Gear |
Price : | USD 1500-3800/set |
Payment Terms : | T/T, L/C |
Supply Ability : | 500 sets per month |
Delivery Time : | 15-20 work days |
Machining center is developed by CNC milling machine, composed of
mechanical equipment and CNC system, used for processing complex
parts of high efficiency, high precision automatic machine tools.

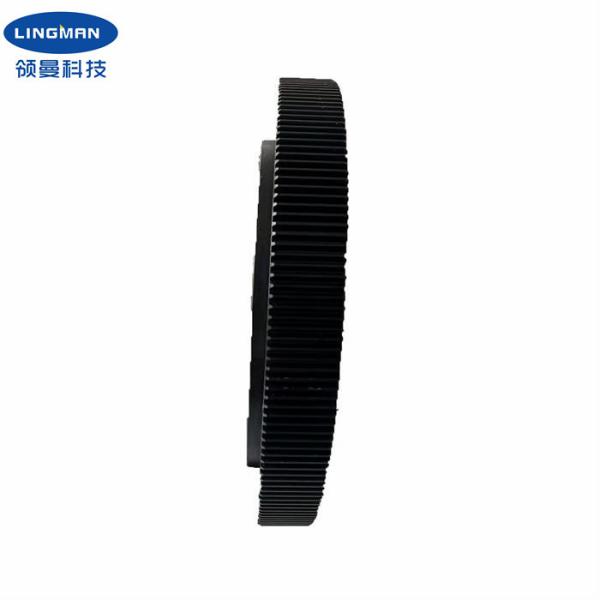

The gear is a necessary part in the laser chuck. After the chuck
base is fixed, it is only necessary to install the supporting motor
and gear connection, and at the same time connected with the
compressed air source to achieve clamping workpiece, drive the
workpiece rotation. The gear used by laser chuck can be divided
into straight gear and helical gear. Helical gear and spur gear
have their own advantages. The biggest advantage of helical gears
is high transmission accuracy, but from the point of view of motion
smoothness (smoothness of line load curve), spur gears may even do
better than helical gears. There are great differences between
gears and gears, different requirements and different costs. The
manufacturing cost of helical gears used in precision transmission
is indeed much higher than spur gears. Gear strength has two
aspects, one is tooth root strength, the other is tooth surface
strength. Compared with spur gears, helical gears have higher root
strength but lower tooth surface strength.
2. Performance Parameters
| Spur Gear |
| 220 |
| 0.01mm |
| Steel |
| Black |
| High precision |
| Laser chuck |
4. Advantages
a. Full stroke designed laser rotary chuck |
b. Wide range of applications, diversification of processing profiles |
c. High repetitive positioning accuracy |
d. Low maintenance cost, long service life |
e. Multiple configurations are available |
5. Our Service
a. We are the direct factory with good price and fast lead time. |
b. Professional design team work with you. |
c. Professional QC team to guarantee the high quality. |
d. Providing OEM & ODM service. |
6.Packing & Delivery
7. Production Line
![]() |
