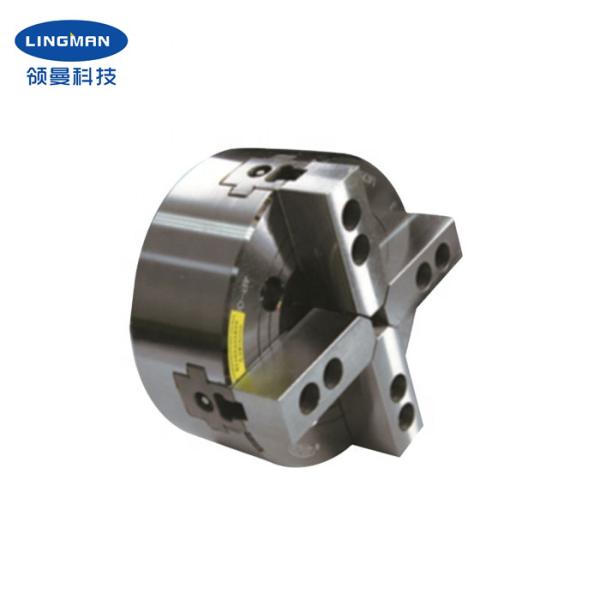

    Professional Manufacturer 4 Jaw CNC Lathe Chuck Hollow Hydraulic Power Chuck

    Ask Lasest Price
    Brand Name : Lingman
    Model Number : CNC Lathe Chuck 4H-10
    Price : USD 550-1650 set
    Payment Terms : T/T, L/C
    Supply Ability : 500 sets per month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    Professional Manufacturer 4 Jaw CNC Lathe Chuck Hollow Hydraulic Power Chuck

    4 Jaw CNC Lathe Chuck Through-Hole Hydraulic Power Chuck

    1. Description

    Compared with other chucks, the hydraulic four-jaw chuck has the advantages of fast clamping, large clamping force, wide clamping range, high safety and high reliability. Therefore, the hydraulic four-jaw chuck has a great application space in processing and clamping various rectangular and irregular workpieces.

    The working principle of the hydraulic four-jaw chuck is that the hydraulic oil enters the cylinder from the cylinder inlet, and the cylinder and the piston form a closed cavity. , the support sleeve moves down together to compress the disc spring, the snap ring moves down, and drives the three slips to move horizontally away from the center to achieve the purpose of releasing the drill pipe.
    The hydraulic four-jaw chuck adopts strict chuck manufacturing method and is suitable for professional lathes. No matter it is applied in various workshops, it has been well received by the industry.This product is durable and has high speed smooth operation. High precision of positioning and repetition, large clamping force, suitable for automatic production. It is very suitable for processing square parts and other special-shaped parts.

    The collet reduces the weight of the lathe and increases the service life. Moreover, the installation is very convenient, and the connection method adopts the industry standard. It only needs to be equipped with a flange that matches the chuck, and there is no need to change the structure of the machine tool.



    2. Performance Parameters

    Product nameCNC lathe chuck

    Model number

    4H-10

    Wedge stroke

    19mm

    Claw stroke/diameter

    8.8mm

    Clamping diameter

    31-254mm

    Max. D.B pull

    42.6KN

    Max. clamping force

    110.7KN

    Weight

    36.3KG

    Max.working pressure

    2.7Mpa

    Max. number revolutions

    3400 r.p.m

    Applicable rotary cylinder

    TH-1075


    ​ 3. Dimensions

    Professional Manufacturer 4 Jaw CNC Lathe Chuck Hollow Hydraulic Power Chuck

    Professional Manufacturer 4 Jaw CNC Lathe Chuck Hollow Hydraulic Power Chuck





    4. Advantages

    a. Full stroke design
    b. Wide range of applications, diversification of processing profiles
    c. High repetitive positioning accuracy
    d. Low maintenance cost, long service life
    e. Multiple configurations are available
    e.1 Solid or hollow

    e.2 Comb-type or mortise-groove type claws


    5. Our Service

    a. We are the direct factory with good price and fast lead time.
    b. Professional design team work with you.
    s. Professional QC team to guarantee the high quality.
    d. Providing OEM & ODM service
