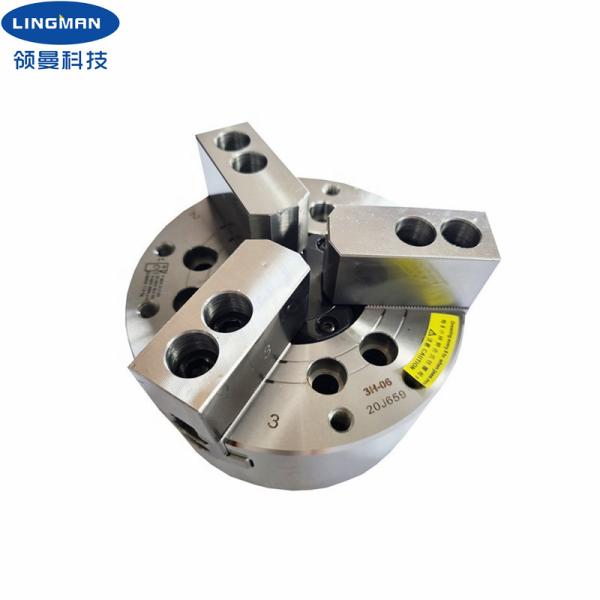

    CNC Three Jaw Hollow Hydraulic Air Lathe Chuck

    Ask Lasest Price
    Brand Name : Lingman
    Model Number : 3H-05
    Price : USD 265-780 set
    Payment Terms : T/T, L/C
    Supply Ability : 200 sets per month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    CNC Three Jaw Hollow Hydraulic Air Lathe Chuck

    CNC Three Jaw Hollow Hydraulic Air Lathe Chuck

    • The short cylinder connection confirm to the GB, and the customer do not need to change the structure of the lathe but need a flange which is the same size of the chuck, and then they can install the chuck easily in an hour.
    • There is a cylinder in the chuck, when install the chuck, the customer do not need the cylinder and the draw bar but connect the chuck to the oil gyrator at the end of the spindle by the copper pipe.
    • It can decrease the weight of the bed and increase the longvity of the lathe.
    • Because the middle of the chuck is empty and it can process the bar material and preform workpiece.

    2. Performance Parameters


    Model number

    3H-05

    Wedge stroke

    10mm

    Claw stroke/diameter

    5.4mm

    Clamping diameter

    12-135mm

    Max. D.B pull

    17.1KN

    Max. clamping force

    35.8KN

    Weight

    6.7KG

    Max.working pressure

    2.9Mpa

    Max. number revolutions

    7000 r.p.m

    Applicable rotary cylinder

    TH-536

    3. Dimensions


    CNC Three Jaw Hollow Hydraulic Air Lathe Chuck

    SpecificationsABCDD1D2EE1FG max.G min.HJ
    3H-051356011082.6//4/331-92012

    CNC Three Jaw Hollow Hydraulic Air Lathe Chuck


    4. Advantages


    a. Full stroke design
    b. Wide range of applications, diversification of processing profiles
    c. High repetitive positioning accuracy
    d. Low maintenance cost, long service life

    e. Multiple configurations are available
    e.1 Solid or hollow

    e.2 Comb-type or mortise-groove type claws


    5. Our Service

    a. We are the direct factory with good price and fast lead time.
    b. Professional design team work with you.
    s. Professional QC team to guarantee the high quality.
    d. Providing OEM & ODM service.

    6. Production Line

    CNC Three Jaw Hollow Hydraulic Air Lathe Chuck
