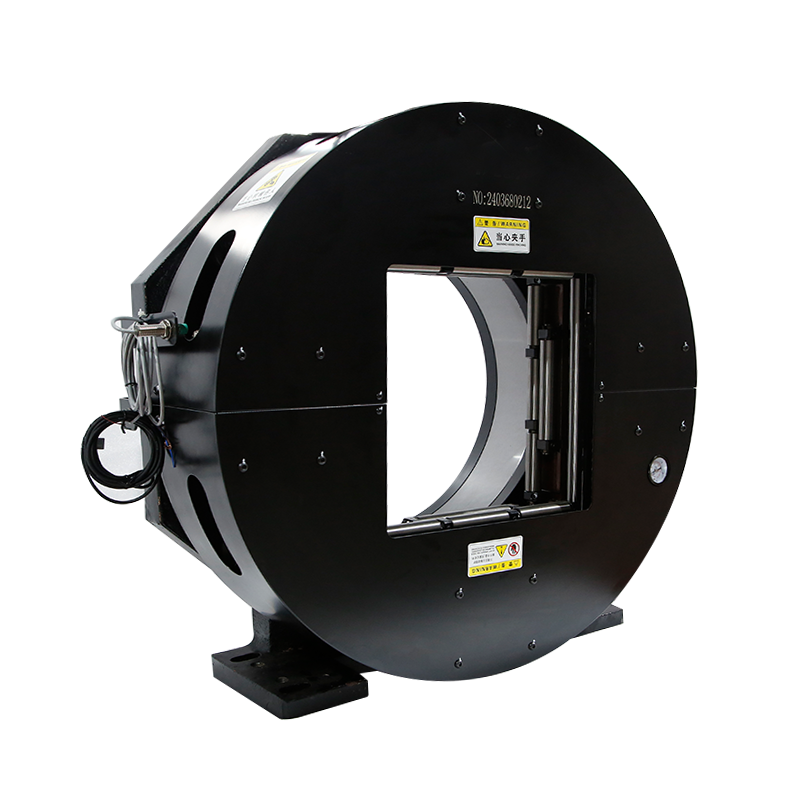

Factory Double Acting Pneumatic Laser Rotary Chuck For Laser Tube
Cutting Machine
1. Description
The product is designed for laser tube cutting equipment and
supporting, the product itself can be used as an independent
rotating spindle, through the side rotation of air intake to
achieve fast clamping and loosening action, disconnected air
source, can work. After the product base is fixed, it only needs to
install the supporting motor and gear connection, and connect with
the compressed air source (0.25-0.9mpa) to achieve clamping
workpiece and driving the workpiece rotation. Mainly used for
clamping workpiece and rotating.
The product adopts cylinder direct output, high mechanical
efficiency, small energy loss, output clamping force, clamping
force stability. Due to the use of cylinder directly clamping
workpiece, cylinder working stroke is chuck working stroke,
clamping range is wide. Using cylinder direct output, output force
and air pressure is linear proportion, easy to achieve software
control.
Chuck simple structure, small number of components, light weight,
low failure rate, stable performance, small moment of inertia, low
energy consumption. The axial size of chuck is small, and the cost
of zero tail is lower.
The product is designed for square hole, compared with the round
hole chuck, increase the size of square tube, expand the scope of
use.
2. Performance Parameters
| Laser chuck |
| F245JF |
| 230mm |
| 2KN |
| 0.1-1.0MPa |
| 200r/min |
| 10-245mm |
| 350mm |
| 5.48g.m2 |
| 173kg |
| 257kg |
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | G | H | I | J | K | L | O | R | S |
| F245JF | 520 | 350 | 680 | 690 | 190 | 120 | 460 | 205 | / | / | / | 29.5 | 245 | 9 | 12-M8 | 18 |
4. Advantages
| a. Full stroke design |
| b. Wide range of applications, diversification of processing
profiles |
| c. High repetitive positioning accuracy |
| d. Low maintenance cost, long service life |
e. Multiple configurations are available
e.1 Solid or hollow e.2 Comb-type or mortise-groove type claws |
5. Our Service
1. We are professional manufacturer of laser chuck over 20 years.
2. Professional design team work with you.
3. Professional QC team to guarantee the high quality.
4. Providing OEM & ODM service.
6. Production Line
