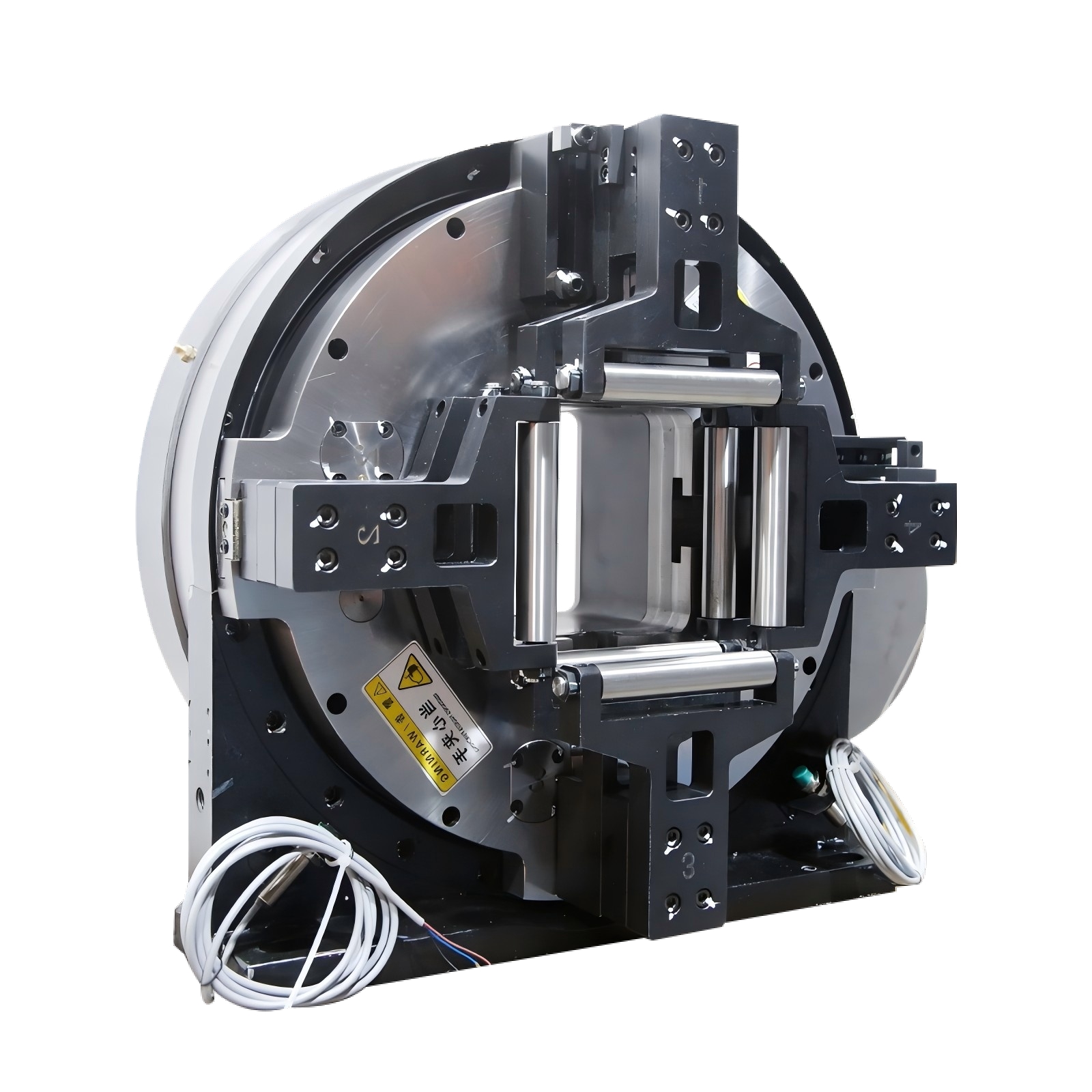

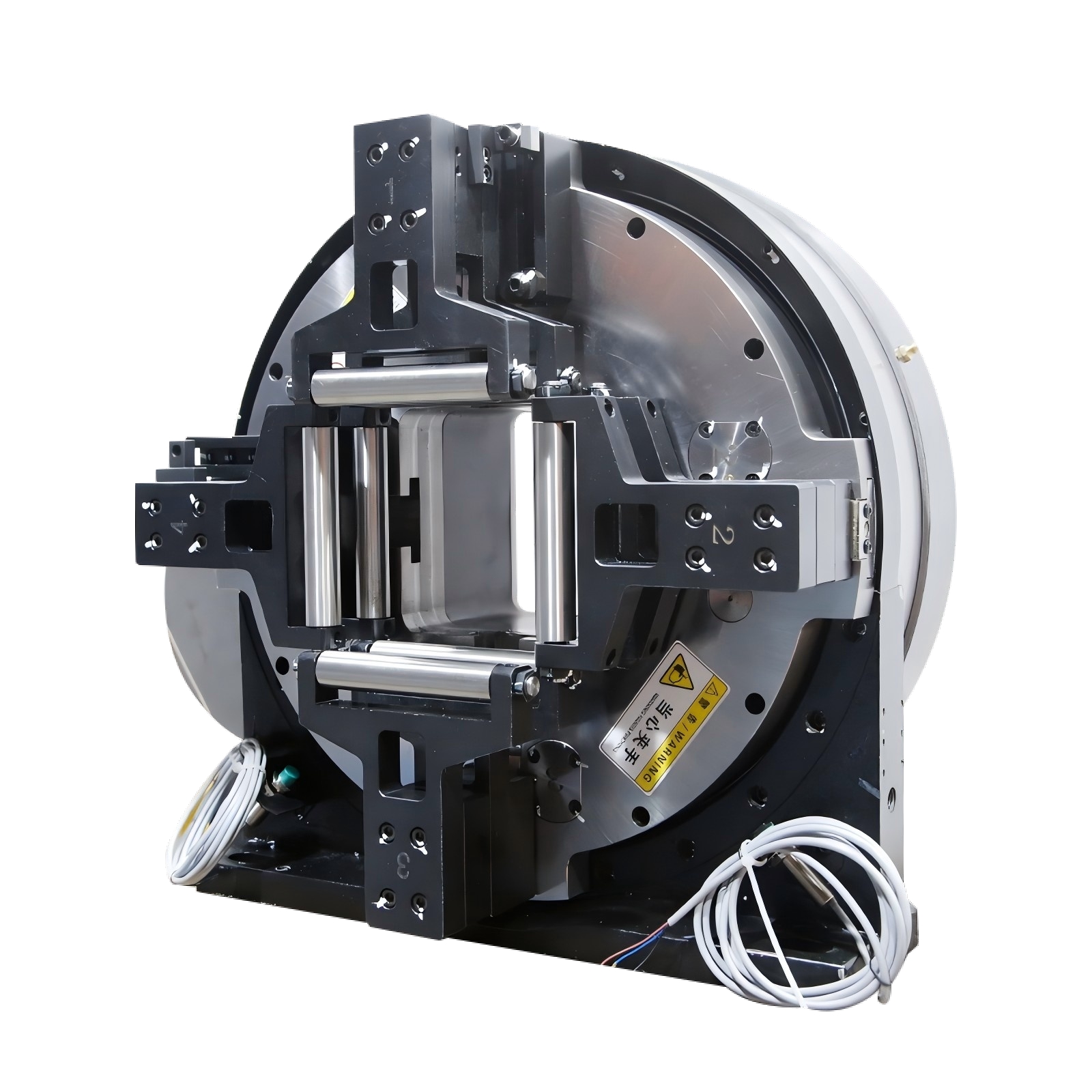

    Hot Selling Laser Chuck F130DF Suitable For Pipe Laser Cutting Machine Full-stroke Chuck

    Ask Lasest Price
    Brand Name : Lingman
    Model Number : F130DF
    Price : USD2285-2350set
    Payment Terms : T/T, L/C
    Supply Ability : 400 sets per month
    Delivery Time : 20-25 work days
    • Product Details
    • Company Profile

    Hot Selling Laser Chuck F130DF Suitable For Pipe Laser Cutting Machine Full-stroke Chuck

    Hot Selling Laser Chuck F130DF Suitable For Pipe Laser Cutting machine Full-stroke chuck

    1. Description


    Lingman MachineryTechnology (Changzhou) Co., Ltd. is an enterprise specializing in the research,
    development, production and sales of various special power chucks for laser pipe cutting machines,
    pneumatic chucks, electric chucks,hydraulic chucks, digital chucks and other power chucks.Ling-
    man has a professional R&D team with over ten years of industry technology and innovative design
    capabilities.
    Since its establishment, the company has passed the ISO9001:2015quality management system
    certification and has obtained multiple patents (including invention patents and utility model pat-
    ents).The professional technical research and development team has been preparing to become a
    high-tech enterprise in Jiangsu from the early stage of enterprise operation.Lingman Technology's
    products have gradually entered the domestic and international laser cutting market, contributing
    to China's intelligence.
    Guided by the core values of "responsibility, leadership, and breakthrough" in the industry, we will
    continue to innovate in science and technology, and strive to achieve high-quality development
    led by China's intelligent manufacturing technology in the world.


    2. Performance Parameters


    • Product name
    Laser chuck
    • Model number
    F130DF
    • Jaw stroke
    124mm
    • Maximunm clamping force
    0.6KN
    • Allowable pressure
    0.2-0.9MPa
    • Limit speed
    200r/min
    • Clamping range
    4-128mm
    • Central height
    235mm
    • Rotational inertia
    1.42Kg.m2
    • Rotating part weight
    71kg
    • Whole unit weight
    134kg




    3. Advantages

    a. Full-stroke chuck
    b. Wide range of applications, diversification of processing profiles
    c. High repetitive positioning accuracy
    d. Low maintenance cost, long service life

    e. Multiple configurations are available
    e.1 Solid or hollow

    e.2 Comb-type or mortise-groove type claws

    e.3.Keyway extension jaws or roller jaws

    e.4.2 jaws,3 jaws,4 jaws,6 jaws or abnormal jaws.


    4. Our Service

    1. Professional manufacturer of laser chuck over 20 years.
    2. Professional design team work with you.

    3. Professional QC team to guarantee the high quality.

    4. Providing OEM & ODM service.

    5. Best service from saling to after saling.


    5. Production Line
