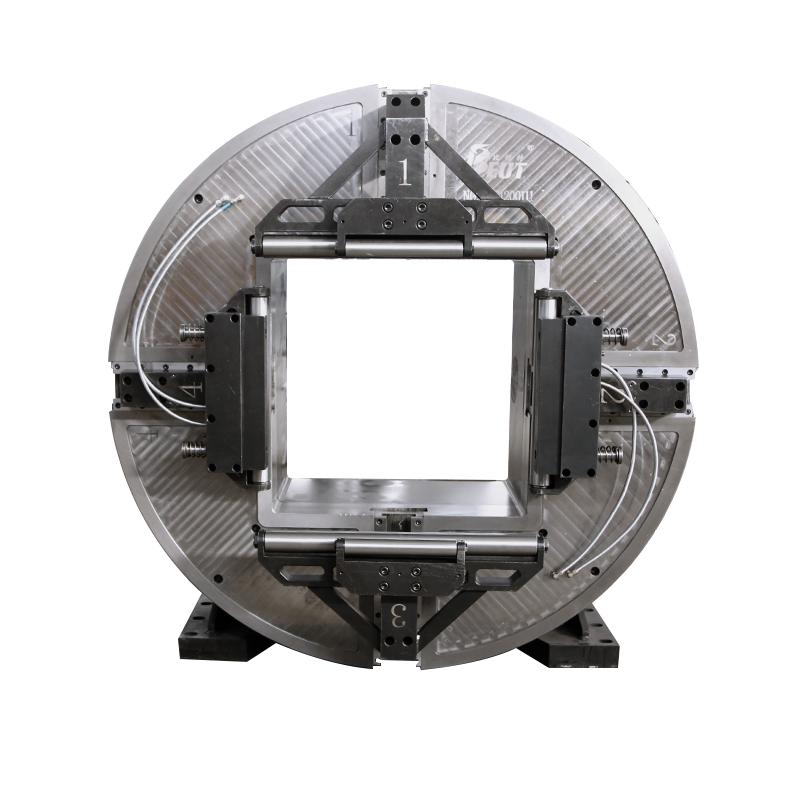

    Lingman 520mm Heavy Duty Large Through Hole Laser Rotary Chuck For Cutting Large Tubes On A Laser Tube Cutter Automatic Pneumatic Chuck

    Ask Lasest Price
    Brand Name : Lingman
    Model Number : F520DF
    Price : USD15000-16000set
    Payment Terms : T/T, L/C
    Supply Ability : 200 sets per month
    Delivery Time : 30-40work days
    • Product Details
    • Company Profile

    Lingman 520mm Heavy Duty Large Through Hole Laser Rotary Chuck For Cutting Large Tubes On A Laser Tube Cutter Automatic Pneumatic Chuck

    Heavy Duty Large Through Hole Laser rotary Chuck For Cutting Large Tubes On A Laser Tube Cutter Automatic Pneumatic Chuck

    1. Description


    Lingman MachineryTechnology (Changzhou) Co., Ltd. is an enterprise specializing in the research,
    development, production and sales of various special power chucks for laser pipe cutting machines,
    pneumatic chucks, electric chucks,hydraulic chucks, digital chucks and other power chucks.Ling-
    man has a professional R&D team with over ten years of industry technology and innovative design
    capabilities.
    Since its establishment, the company has passed the ISO9001:2015quality management system
    certification and has obtained multiple patents (including invention patents and utility model pat-
    ents).The professional technical research and development team has been preparing to become a
    high-tech enterprise in Jiangsu from the early stage of enterprise operation.Lingman Technology's
    products have gradually entered the domestic and international laser cutting market, contributing
    to China's intelligence.
    Guided by the core values of "responsibility, leadership, and breakthrough" in the industry, we will
    continue to innovate in science and technology, and strive to achieve high-quality development
    led by China's intelligent manufacturing technology in the world.


    2. Performance Parameters


    • Product name
    Laser chuck
    • Model number
    F520DF
    • Jaw stroke
    495mm
    • Maximunm clamping force
    13.5KN
    • Allowable pressure
    0.2-1MPa
    • Limit speed
    80r/min
    • Clamping range
    25-520mm
    • Central height
    605mm
    • Rotational inertia
    182Kg.m2
    • Rotating part weight
    902kg
    • Whole unit weight
    1204kg




    3. Advantages

    a. Full-stroke chuck
    b. Wide range of applications, diversification of processing profiles
    c. High repetitive positioning accuracy
    d. Low maintenance cost, long service life

    e. Multiple configurations are available
    e. 1 Solid or hollow

    e. 2 Comb-type or mortise-groove type claws

    e. 3.Keyway extension jaws or roller jaws

    e. 4.2 jaws,3 jaws,4 jaws,6 jaws or abnormal jaws.


    4. Our Service

    1. Professional manufacturer of laser chuck over 20 years.
    2. Professional design team work with you.

    3. Professional QC team to guarantee the high quality.

    4. Providing OEM & ODM service.

    5. Best service from saling to after saling.


    5. Production Line

    Quality Lingman 520mm Heavy Duty Large Through Hole Laser Rotary Chuck For Cutting Large Tubes On A Laser Tube Cutter Automatic Pneumatic Chuck for sale
